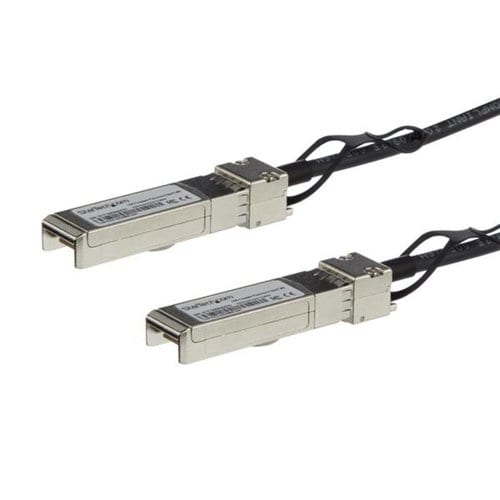

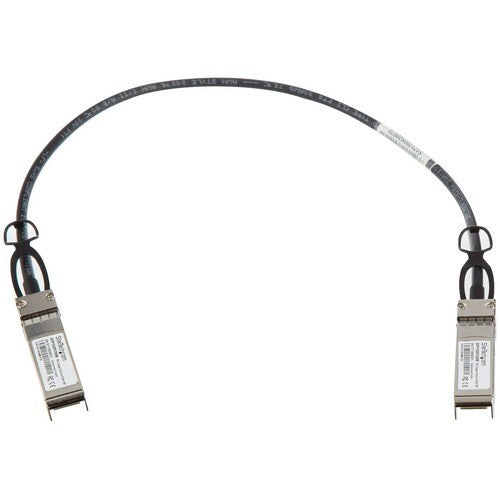

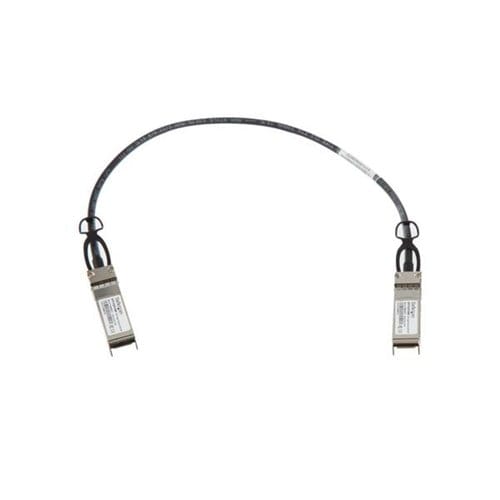

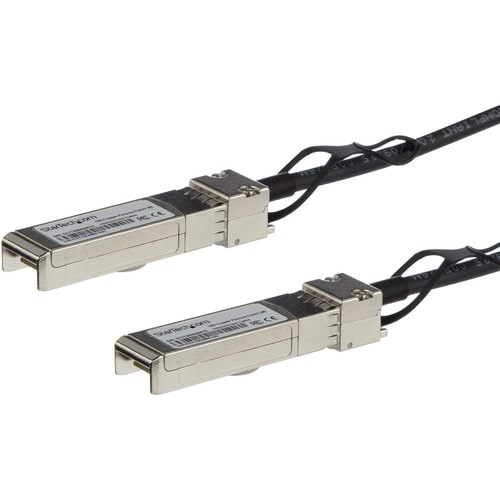

The SFP10GPC05M is an MSA compliant direct-attach copper SFP+ cable that's designed, programmed and tested to work in 10G network deployments. It delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
This passive Twinax cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
At 0.5 meters long and designed for high-speed performance, this copper SFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections.
StarTech.com SFP CablesAll StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
More from the Manufacturer
Key Features
- MSA UNCODED SFP+ CABLE (DAC): 10G direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- TECHNICAL SPECS: 0.5m (1.6ft) | 10 Gbps | Passive Twinax (Copper) | 2x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant
- DESIGNED FOR SERVER ROOMS: Mini GBIC DAC is a cost-effective copper alternative to fiber cable inside & between racks. Factory termination means high performance & reliability with less maintenance.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 10 GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
- Hot-swappable
Dimensions
| Height | 0.1 inches |
|---|---|
| Width | 6 inches |
| Length | 7 inches |
| Weight | 0.2 pounds |
| Cable Length | 1.64 ft |
| Product Type | Network Cable |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Cable Type | Twinaxial |
| Connector Type on First End | SFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Network Cable |
| Manufacturer Part Number | SFP10GPC05M |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | SFP+ Direct Attach Cable - MSA Compliant - 0.5 m (1.6 ft.) |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 0.12 lb |
| Product Color | Black |
| Color Family | Black |
| Limited Warranty | Lifetime |
| Cable Length | 1.64 ft |
| Data Transfer Rate | 10 Gbit/s |
| Features | Hot-swappable |
| Features | Passive |
| Cable Type | Twinaxial |
| Connector Type on First End | SFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| American Wire Gauge | 30 AWG |
| Connector on First End Details | 1 x SFP+ Network - Male |
| Connector on Second End Details | 1 x SFP+ Network - Male |
