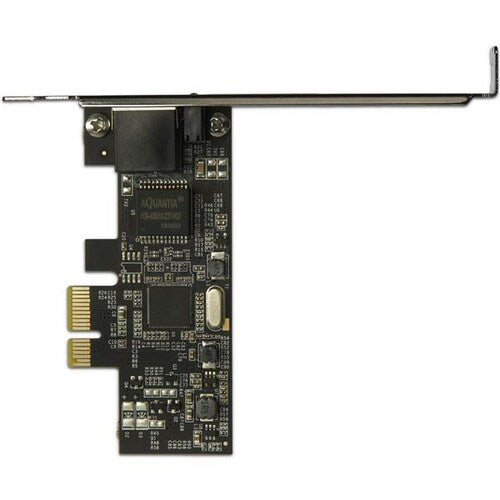

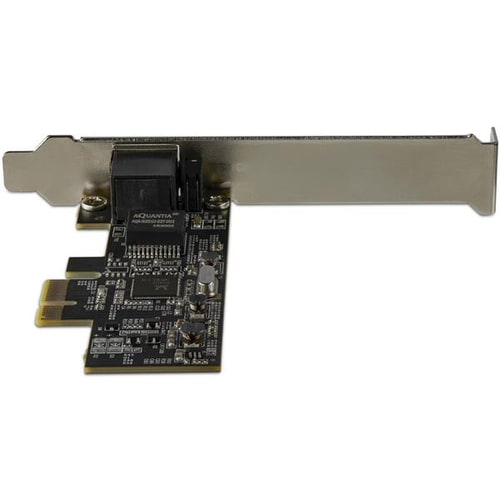

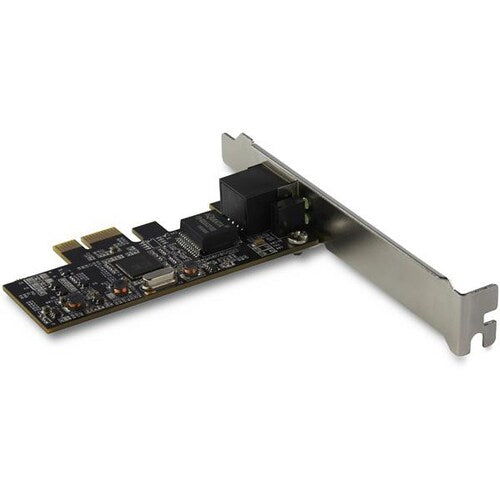

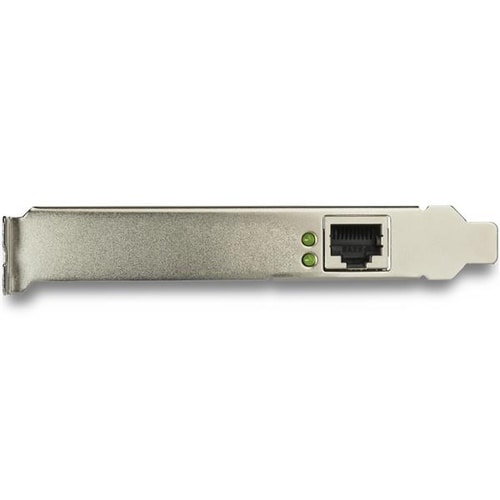

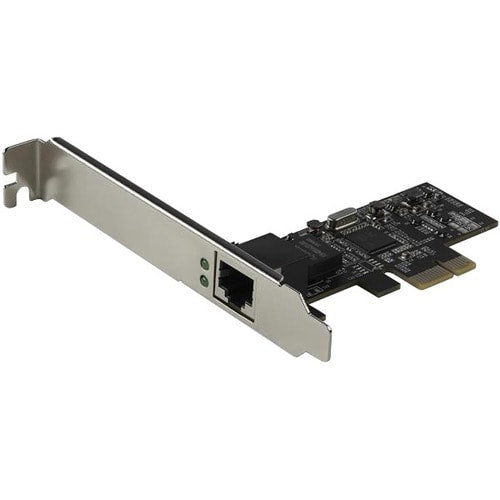

This single-port 2.5Gbps PCIe network card offers a versatile and low-cost way to deploy 2.5GbE network connectivity. It adds one copper Ethernet port to your server or desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds: 2.5 Gbps, 1G, 100Mbps, 10Mbps.
Cost-Effective Multi-Gigabit Ethernet Solution
The 2.5GBASE-T NIC provides additional bandwidth using your existing Ethernet infrastructure to help reduce the cost of cabling upgrades. The card enables you to connect to 2.5GBASE-T and NBASE-T equipment at network speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps over your CAT5e cabling (up to 100 m depending on the network configuration).
Optimal Technology for Optimal Performance
The network adapter card adds one Ethernet port to your workstation through a x4 PCIe slot. It features 2.5GBASE-T technology, supporting advanced Multi-Gigabit systems, including Cisco campus switches and Aruba Networks access points. The network card also supports NBASE-T and additional features including 16K Jumbo Frames, Auto-MDIX and Wake-on-LAN (WoL).
Efficient Ethernet
The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE802.3u supports the PCIe 2.0 interface for PC embedded applications. It provides up to a 250% increase in data rate over Gigabit Ethernet and requires no changes to existing cable infrastructure.
The ST2GPEX is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
Key Features
- Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
- Compatible with both 2.5GBASE-T and NBASE-T specifications
- Supports 2.5Gbps network speeds on CAT5e cabling and CAT6a
- IEEE 802.3az and IEEE802.3u compliant energy efficient Realtek™ RTL8125 chipset
- Flexible installation with both standard and low-profile brackets included
Dimensions
| Height | 1.1 inches |
|---|---|
| Width | 5.6 inches |
| Length | 6.6 inches |
| Weight | 0.25 pounds |
| Host Interface | PCI Express x4 |
| Product Type | Gigabit Ethernet Card |
| Device Supported | Workstation |
| Device Supported | Access Point |
| Device Supported | Computer |
| Device Supported | Server |
| Device Supported | Switch |
| Form Factor | Plug-in Card |
| Network Technology | 1000Base-T |
| Network Technology | 2.5GBase-T |
| Network Technology | 10/100Base-TX |
| Brand Name | StarTech.com |
| Country of Origin | China |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of Ports | 1 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Gigabit Ethernet Card |
| Manufacturer Part Number | ST2GPEX |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | ST2GPEX |
| Product Name | 2.5Gbps 2.5GBase-T PCIe Network Card |
| Brand Name | StarTech.com |
| Host Interface | PCI Express x4 |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of Ports | 1 |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Network Technology | 2.5GBase-T |
| Network Technology | 1000Base-T |
| Network Technology | 10/100Base-TX |
| Weight (Approximate) | 4.90 oz |
| Form Factor | Plug-in Card |
| Height | 0.8" |
| Width | 4.7" |
| Depth | 3.1" |
