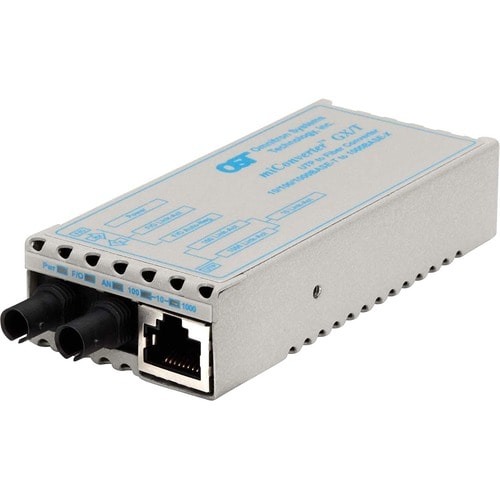

The miConverter GX/T is a compact and versatile 10/100/1000BASE-T UTP copper to 1000BASE-X fiber media converter, designed to bridge the gap between copper Ethernet networks and fiber optic infrastructure. It offers a cost-effective solution for extending network reach and connecting diagnostic equipment, desktops, and laptops to fiber optic networks. This model specifically supports Single-Mode (SM) LX fiber over a 1310nm wavelength, with an impressive reach of up to 12 kilometers. The GX/T is equipped with an ST fiber connector for easy integration. It also boasts support for jumbo frames up to 10,240 bytes, making it suitable for demanding network applications.
Dimensions
| Height | 3 inches |
|---|---|
| Width | 4.5 inches |
| Length | 7.5 inches |
| Weight | 1.15 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 12.01 km |
| Form Factor | External |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Network Technology | 1000Base-LX10 |
| Network Technology | 1000Base-LX |
| Network Technology | 10/100/1000Base-T |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | miConverter GX/T |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 1221-1-1 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 1221-1-x |
| Product Name | miConverter GX/T ST Single-Mode 12km US AC Powered |
| Package Type | Retail |
| Product Line | miConverter |
| Product Series | GX/T |
| Brand Name | Omnitron Systems |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Maximum Distance Supported | 12.01 km |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Additional Information | Input Voltage:
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Network Technology | 1000Base-LX10 |
| Network Technology | 1000Base-LX |
| Network Technology | 10/100/1000Base-T |
| Weight (Approximate) | 5 oz |
| Height | 0.8" |
| Width | 1.7" |
| Depth | 4.1" |
