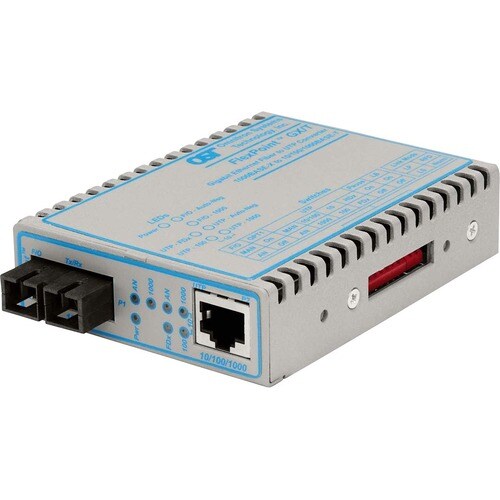

The FlexPoint 4700-0 is a versatile Gigabit Ethernet media converter designed to bridge the gap between copper and fiber optic networks. This modular converter facilitates seamless conversion between 10/100/1000BASE-T UTP (copper) and 1000BASE-X fiber optic interfaces. It offers robust support for jumbo frames, accommodating up to 10,240 bytes, making it ideal for high-bandwidth applications. The GX/T model specifically utilizes Small Form Pluggable (SFP) transceivers, providing flexibility to support both 100BASE-FX and 1000BASE-X standards. This ensures excellent interoperability with a wide range of existing Gigabit and Fast Ethernet fiber optic equipment.
Dimensions
| Height | 1 inches |
|---|---|
| Width | 3 inches |
| Length | 4 inches |
| Weight | 2 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.55 km |
| Form Factor | Rack-mountable |
| Form Factor | Wall Mountable |
| Form Factor | External |
| Form Factor | Desktop |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Ethernet Technology | Ethernet |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | FlexPoint GX/T |
| Number of SC Ports | 1 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4700-0 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 4700-x |
| Product Name | FlexPoint GX/T SC Multimode 550m No Power Adapter |
| Package Type | Retail |
| Product Line | FlexPoint |
| Product Series | GX/T |
| Brand Name | Omnitron Systems |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Additional Information | Input Voltage:
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Network Technology | 1000Base-SX |
| Network Technology | 10/100/1000Base-T |
| Weight (Approximate) | 6 oz |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
