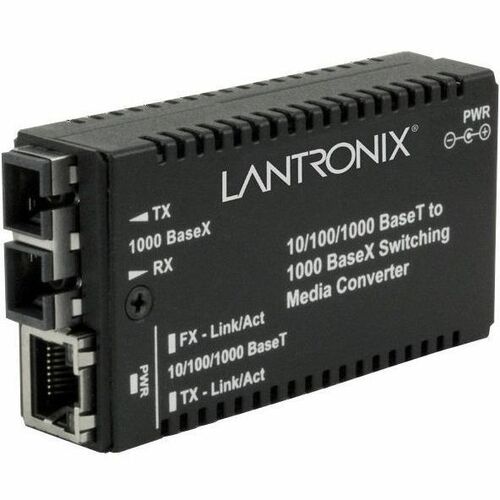

Mini Gigabit Ethernet Media Converter
10/100/1000Base-T to 1000Base-SX/LX
The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Key Features
- Unit & Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Auto-MDI/MDIX
- Active Link Pass Through
- Automatic Link Restoration
- Space saving design
- Connect Legacy Networking Equipment: Connect an existing 10/100 Mbps device to 1000 Mbps devices.
- Jumbo Frame (up to 10,240 Bytes)
- USB Power Option, requires the use of a USB to DC barrel connector cable (USBC-AM-DC)
Dimensions
| Height | 3.6 inches |
|---|---|
| Width | 5.7 inches |
| Length | 7.4 inches |
| Weight | 0.8 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 0.55 km |
| Power Source | AC Adapter |
| Form Factor | Standalone |
| Form Factor | Rack-mountable |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-SX |
| Brand Name | Lantronix |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | M/GE-PSW |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | MGEPSWSX01NA |
| Manufacturer Website Address | http://www.lantronix.com |
| Manufacturer | Lantronix, Inc |
| Product Model | M/GE-PSW-SX-01 |
| Product Name | M/GE-PSW-SX-01 Transceiver/Media Converter |
| Product Series | M/GE-PSW |
| Brand Name | Lantronix |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Maximum Distance Supported | 0.55 km |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Additional Information | 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-SX 850nm multimode (SC) [62.5/125 µm fiber: 220 m/722 ft.] Link Budget: 7.0 dB [50/125 µm fiber: 550m/1804 ft.] Link Budget: 7.0 dB |
| Package Contents | |
| Certifications & Standards | Safety: Wall Mount Power Supply, UL Listed, cUL Listed (Canada) FCC Class A, CISPR22/EN55022 Class A, EN55024, CE Mark |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-SX |
| Weight (Approximate) | 2 lb |
| Height | 0.9" |
| Width | 1.8" |
| Depth | 3.3" |
