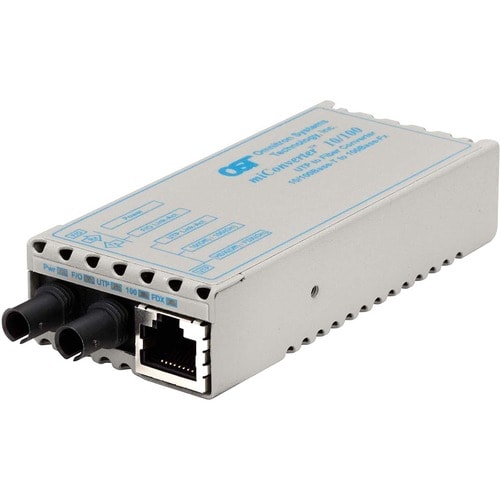

The miniature miConverter 10/100 and miConverter 10/100 Plus are compact and cost-effective media converters designed to bridge the gap between 10/100BASE-TX UTP copper Ethernet and 100BASE-FX fiber optic networks. These devices are ideal for extending fiber connectivity from Ethernet switches to various end devices such as diagnostic equipment, desktop computers, and laptop computers. They offer flexibility in power options, including a USB-powered mode (with an optional cable) which eliminates the need for a nearby electrical outlet, making them exceptionally portable and convenient for on-the-go network troubleshooting and deployment. The 'Plus' version includes DIP switches for enhanced configuration control.
Dimensions
| Height | 2.5 inches |
|---|---|
| Width | 7.7 inches |
| Length | 7.4 inches |
| Weight | 0.85 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 30 km |
| Form Factor | External |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Network Technology | 100Base-LX |
| Network Technology | 10/100Base-TX |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | miConverter 10/100 |
| Number of ST Ports | 1 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 1101-1-1 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 1101-1-x |
| Product Name | miConverter 10/100 ST Single-Mode 30km US AC Powered |
| Package Type | Retail |
| Product Line | miConverter |
| Product Series | 10/100 |
| Brand Name | Omnitron Systems |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Maximum Distance Supported | 30 km |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Additional Information | Input Voltage:
|
| Package Contents |
|
| Certifications & Standards |
Compliance:
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Network Technology | 100Base-LX |
| Network Technology | 10/100Base-TX |
| Weight (Approximate) | 5 oz |
| Height | 0.8" |
| Width | 1.7" |
| Depth | 4.1" |
