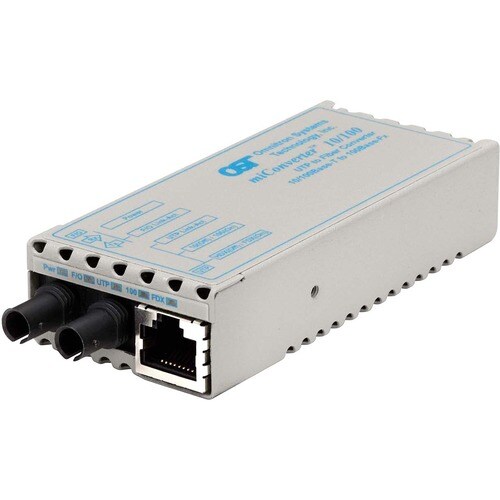

The miniature miConverter 10/100 and miConverter 10/100 Plus are compact and cost-effective rate-switching Ethernet media converters, bridging the gap between 10/100BASE-TX UTP copper and 100BASE-FX fiber optic networks. These converters enable seamless fiber connectivity for diagnostic equipment, desktop computers, and laptops, extending network reach and flexibility. They offer versatile power options, including a USB power adapter cable for operation without a dedicated AC outlet, reducing clutter and weight. The miConverter 10/100 Plus further enhances control with user-configurable DIP-switches for UTP and Link Mode settings.
Dimensions
| Height | 0.8 inches |
|---|---|
| Width | 1.7 inches |
| Length | 4.1 inches |
| Weight | 0.75 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 60 km |
| Form Factor | External |
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-LX |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | miConverter 10/100 |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 1101-2-1 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 1101-2-x |
| Product Name | miConverter 10/100 ST Single-Mode 60km US AC Powered |
| Package Type | Retail |
| Product Line | miConverter |
| Product Series | 10/100 |
| Brand Name | Omnitron Systems |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Maximum Distance Supported | 60 km |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Additional Information | Input Voltage:
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Network Technology | 100Base-LX |
| Network Technology | 10/100Base-TX |
| Weight (Approximate) | 5 oz |
| Height | 0.8" |
| Width | 1.7" |
| Depth | 4.1" |
