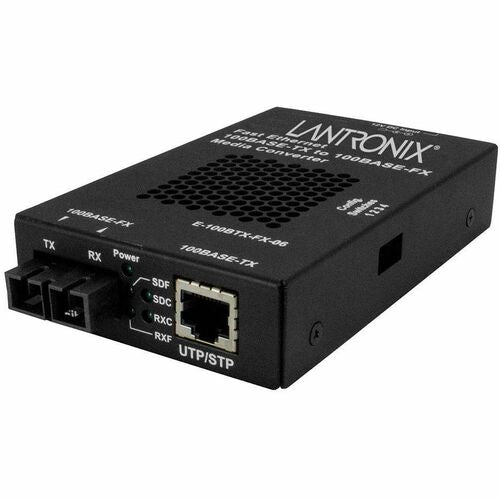

Stand-alone Fast Ethernet Media Converter
100Base-TX to 100Base-FX
The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Key Features
- Used in pairs or as a single unit to integrate fiber into a 100base copper environment
- Low latency, layer 1 design
- Auto-negotiation
- Auto-MDI/MDIX
- Active link pass through
- Far-End-Fault (FEF)
- Pause
- Automatic link restoration
- Supports all 100Mbps SFP Modules
Dimensions
| Height | 3.5 inches |
|---|---|
| Width | 5.5 inches |
| Length | 7 inches |
| Weight | 1.15 pounds |
| Product Type | Transceiver/Media Converter |
| Maximum Distance Supported | 2 km |
| Power Source | AC/DC |
| Form Factor | Rack-mountable |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Form Factor | Standalone |
| Form Factor | Shelf Mount |
| Network Technology | 100Base-TX |
| Network Technology | 100Base-FX |
| Brand Name | Lantronix |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | E-100BTX |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | E100BTXFX06SCNA |
| Manufacturer Website Address | http://www.lantronix.com |
| Manufacturer | Lantronix, Inc |
| Product Model | E-100BTX-FX-06 |
| Product Name | E-100BTX-FX-06 Transceiver/Media Converter |
| Product Series | E-100BTX |
| Brand Name | Lantronix |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Maximum Distance Supported | 2 km |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Additional Information | 100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (SC) [2 km/1.2 mi.] Link Budget: 11.0 dB |
| Package Contents | |
| Certifications & Standards | Regulatory: FCC Class A, EN55024, EN55022 Class A, EN61000, CE Mark |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network Technology | 100Base-TX |
| Network Technology | 100Base-FX |
| Weight (Approximate) | 2 lb |
| Height | 1" |
| Width | 3" |
| Depth | 4.7" |
