Ideal for Surveillance

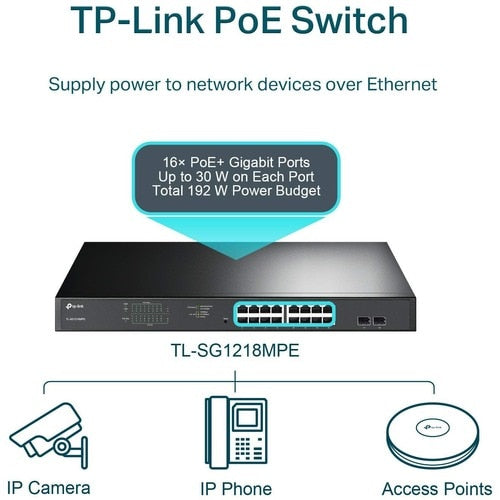

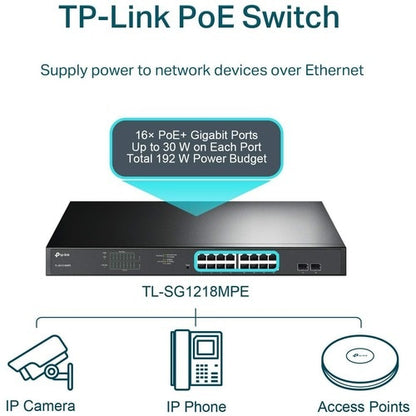

TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV.
Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
More from the Manufacturer
Key Features
- Flexible Full Gigabit 18-Port PoE Configuration: 16x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 250W, together w/ 2x Gigabit Non-PoE Ports and 2 Combo SFP Slots for high-speed connections.
- Easy Smart Management: Simple setup and monitor your network with easy-to-use web-based management interface and smart configuration utility.

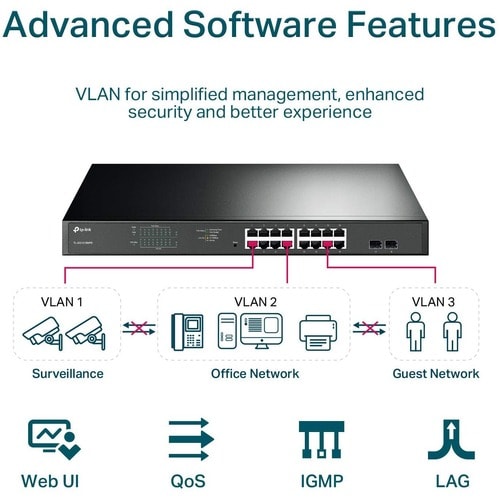

- Network Segmentation: Abundant VLAN features improve network security via traffic segmentation.
- PoE Auto Recovery: The switch automatically detects and reboots the dropped or unresponsive PoE-powered devices without the need for manual monitoring or resetting.
- Overload Protection with Port Priority: When connected devices' total power consumption is greater than or equal to 250W, lower priority ports are disabled to prevent overloading.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Advanced Software Features: Prioritize your traffic and guarantee high quality of video or voice data transmission with Port-based 802.1p/DSCP QoS and IGMP Snooping.
Dimensions
| Height | 3.3 inches |
|---|---|
| Width | 10.4 inches |
| Length | 21.5 inches |
| Weight | 6.65 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Power Consumption | 21.40 W |
| Brand Name | TP-Link |
| Expansion Slot Type | SFP (mini-GBIC) |
| Country of Origin | China |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | JetStream |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 16 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | TLSG1218MPE |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | TL-SG1218MPE |
| Product Name | JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch |
| Product Line | JetStream |
| Brand Name | TP-Link |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 2.0 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet TP/SFP Combolot |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+ |
| Manageable | Yes |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-X |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Layer Supported | 2 |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 7.1" |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
