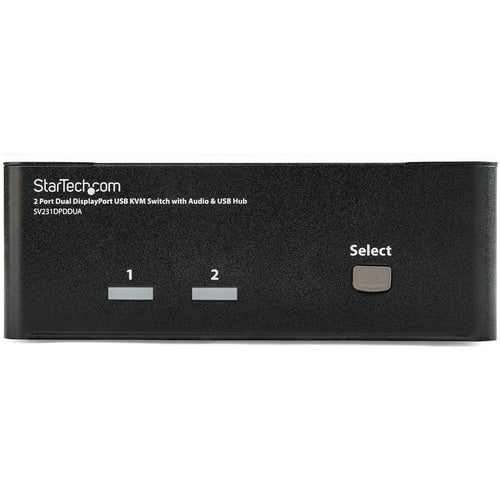

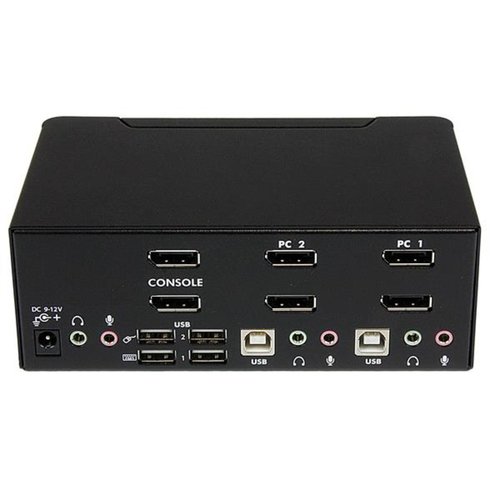

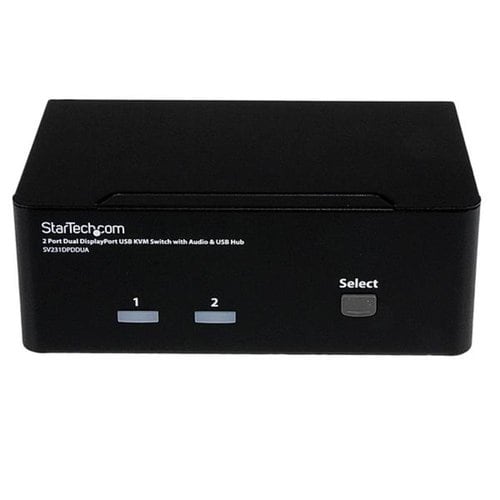

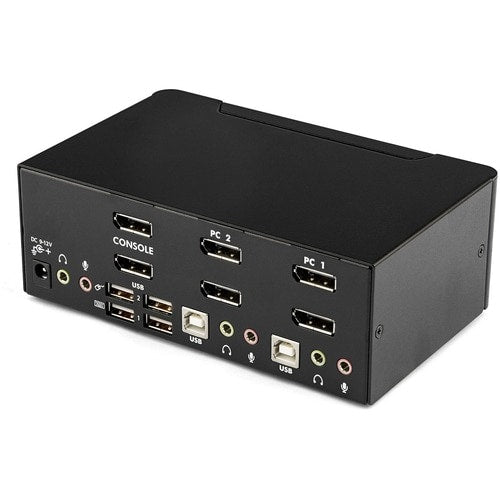

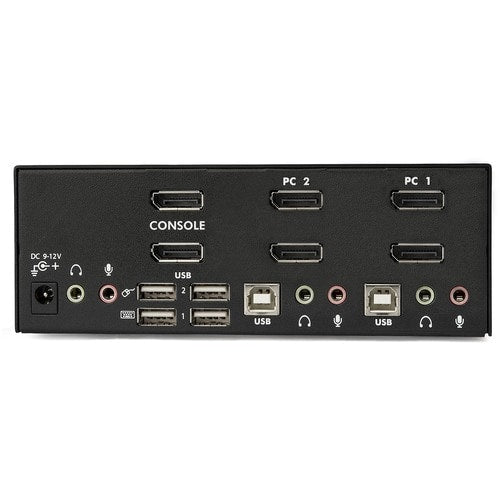

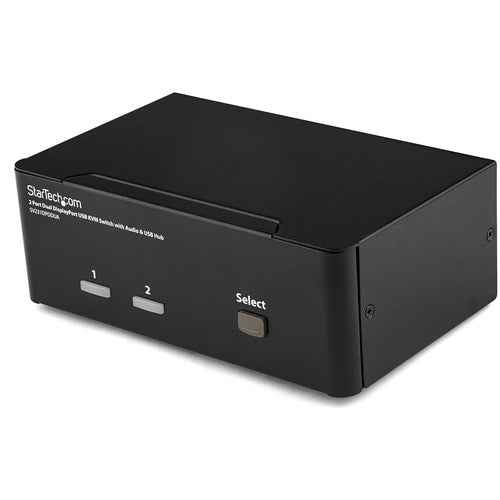

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
More from the Manufacturer
More from the Manufacturer
Key Features
- Native dual DisplayPort connections - no adapter required
- Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
- Maximum resolutions of 3840x2400 at lower refresh rates
- 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
- 3.5mm 2-channel stereo audio and microphone
- Integrated 2 port hub for USB 2.0 peripheral sharing
- No driver or software installation required
- OS Independent
- Hotkey and push-button switching
- Full plug-and-play support with USB console interfaces
Dimensions
| Height | 3.6 inches |
|---|---|
| Width | 7.4 inches |
| Length | 9.9 inches |
| Weight | 2.7 pounds |
| Product Type | KVM Switchbox |
| Form Factor | Desktop |
| Brand Name | StarTech.com |
| Input Voltage Range | 110V AC to 240V AC |
| Country of Origin | Taiwan |
| Maximum Video Resolution | 3840 x 2400 |
| USB | Yes |
| DisplayPort | Yes |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| TAA Compliant | Yes |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SV231DPDDUA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | SV231DPDDUA |
| Product Name | 2-port Dual Display DisplayPort KVM |
| Brand Name | StarTech.com |
| USB | Yes |
| Number of USB Ports | 6 |
| DisplayPort | Yes |
| Number of DisplayPorts | 6 |

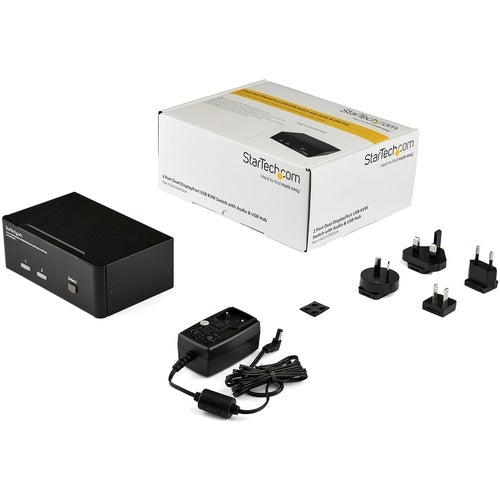

| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Weight (Approximate) | 1.62 lb |
| Height | 2.3" |
| Width | 6.3" |
| Depth | 3.9" |
| Product Color | Black |
| Color Family | Black |
| Power Consumption | 18 W |
| Maximum Video Resolution | 3840 x 2400 |
| Graphic Mode | WQUXGA |
| Limited Warranty | 3 Year |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Daisy Chain Supported | No |
