The DGS-1210 Series is the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The series complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensure your network remains protected after the upgrade from IPv4 to IPv61. By offering multiple management options, the DGS-1210 series allows quick deployment, infrastructure expansion, and seamless function upgrades. Targeting small and mediumsized businesses, the DGS-1210 Web Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.

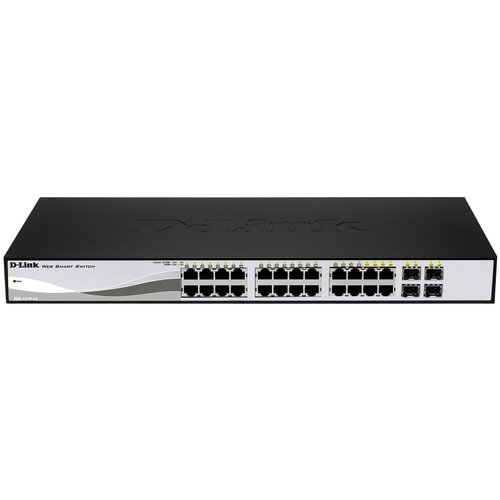

The new DGS-1210-28P is a PoE Web Smart Switch that provides 24 10/100/1000 Base-T PoE ports with 4 Gigabit SFP ports. In addition to IEEE 802.3af compliance, ports 1-4 provide up to 30 watts of power output following IEEE 802.3at. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.
The new DGS-1210-28P is a PoE Web Smart Switch that provides 24 10/100/1000 Base-T PoE ports with 4 Gigabit SFP ports. In addition to IEEE 802.3af compliance, ports 1-4 provide up to 30 watts of power output following IEEE 802.3at. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.
Key Features
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Desktop form factor allows hassle-free and easy usage with increased efficiency
- Management capability provides control over setup and configuration of your network
- Gigabit Ethernet port for ultra-fast network speeds
- Electrical power is transmitted along with data in a single cableto devices such as Access Points, IP cameras or IP phones
- With PoE+ Port, transfer data and up to 25.5 W of power on a single cable toplaces where a power outlet is not present
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Quickly and easily set up a wired network with 24 networking ports
- Effectively increases available bandwidth on your network
Dimensions
| Height | 3.6 inches |
|---|---|
| Width | 14.5 inches |
| Length | 20.5 inches |
| Weight | 10.4 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Brand Name | D-Link |
| Expansion Slot Type | SFP |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | WebSmart DGS-1210 |
| Stack Port | No |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 4.0 |
| Redundant Power Supply Supported | No |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DGS-1210-28P |
| Manufacturer Website Address | http://www.dlink.com |
| Packaged Quantity | 1 |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DGS-1210-28P |
| Product Name | 28 Port PoE Gigabit Smart Switch Including 4 Combo SFP Ports |
| Product Line | WebSmart |
| Product Series | DGS-1210 |
| Brand Name | D-Link |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Token Ring Port | No |
| LRE Port | No |
| USB | No |
| Modular | No |
| Management Port | No |
| Uplink Port | No |
| Number of PoE (RJ-45) Ports | 20 |
| Number of PoE+ (RJ-45) Ports | 4 |
| Stack Port | No |
| Bypass | No |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Management |
|
| Manageable | Yes |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Twisted Pair Cable Standard | Category 5 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Layer Supported | 2 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | No |
