GS516PP and GS524PP Unmanaged Gigabit Ethernet PoE+ Switches
The GS516PP 16-port High-power PoE+ Gigabit Ethernet Unmanaged Switch and the GS524PP 24-port High-power PoE+ Gigabit Ethernet Unmanaged Switch join the NETGEAR Unmanaged switch family, adding full 16 and 24 port PoE+ support for flexible deployment of modern high-power PoE devices. Companies can now deploy denser PoE+ devices connected to a single switch instead of multiples with a total PoE power budget of 260W (GS516PP) and 300W (GS524PP). The quiet design makes the GS516PP and GS524PP ideal for any home or business environment.
These switches can support all types of PoE installation with larger PoE budgets and ports that provide PoE+ and PoE++ power for up to 60W per port.

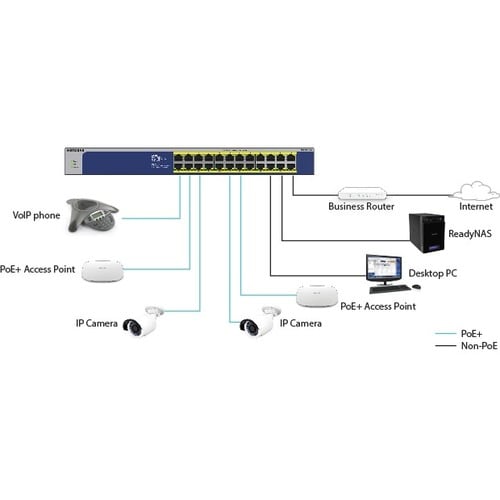

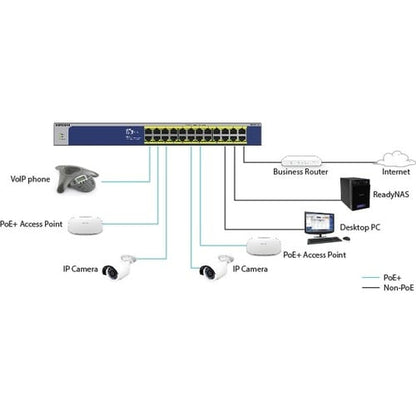

Standardized to IEEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port, allowing the connections of higher power required devices, such as high performance 802.11AX wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers, as well as other high-powered devices. The GS516UP and GS524UP has a PoE mode used to enable pre-802.bt compatibility for pre-bt devices that were created before 802.3bt Standard was ratified.
The GS516PP 16-port High-power PoE+ Gigabit Ethernet Unmanaged Switch and the GS524PP 24-port High-power PoE+ Gigabit Ethernet Unmanaged Switch join the NETGEAR Unmanaged switch family, adding full 16 and 24 port PoE+ support for flexible deployment of modern high-power PoE devices. Companies can now deploy denser PoE+ devices connected to a single switch instead of multiples with a total PoE power budget of 260W (GS516PP) and 300W (GS524PP). The quiet design makes the GS516PP and GS524PP ideal for any home or business environment.
GS516UP and GS524UP Unmanaged Gigabit Ethernet High-power PoE+ switches with PoE++ ports
NETGEAR brings even larger PoE budgets on Unmanaged switches with Ultra60 PoE++ technology with two new 16- Port (GS516UP) and 24-port (GS524UP) Unmanaged Switches, ideal for powerful PoE+/PoE++ installations with impressive PoE budgets up to 380W and 480W, a compact size, plug-and-play installation, and reliable performance at affordable prices.These switches can support all types of PoE installation with larger PoE budgets and ports that provide PoE+ and PoE++ power for up to 60W per port.
Standardized to IEEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port, allowing the connections of higher power required devices, such as high performance 802.11AX wireless access points, PTZ and 4K IP surveillance cameras, PoE lighting, PoE-powered audio speakers, as well as other high-powered devices. The GS516UP and GS524UP has a PoE mode used to enable pre-802.bt compatibility for pre-bt devices that were created before 802.3bt Standard was ratified.
Key Features
- High-power PoE with impressive PoE budgets for all types of PoE installations
- Simple set up with no software or configuration needed
- Per port LEDs for port activity and speed
- Energy efficient technology for power savings
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- 16 or 24 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 32 or 48Gb non-blocking switching
- Auto-MDI/MDIX eliminates the need for crossover cables
- Small, sturdy desktop metal case and quiet operation
- Ideal for small and medium offices
- Non-blocking switching architecture for maximum throughput at wire speed
Dimensions
| Height | 4 inches |
|---|---|
| Width | 13 inches |
| Length | 18.95 inches |
| Weight | 8.65 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Power Source | PoE |
| Layer Supported | 2 |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Power Consumption | 578.80 W |
| Brand Name | Netgear |
| Country of Origin | Thailand |
| Manageable | No |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | GS524UP-100NAS |
| Manufacturer Website Address | http://www.netgear.com |
| Manufacturer | Netgear, Inc |

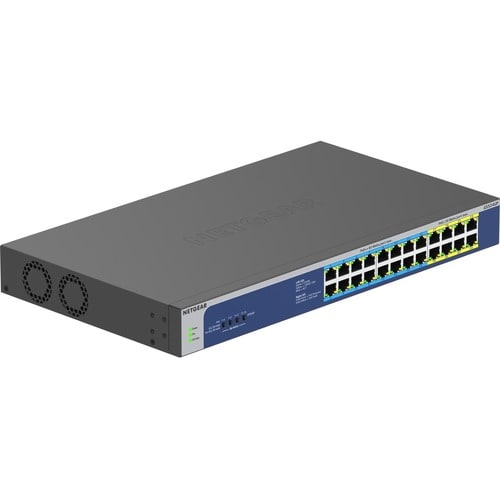

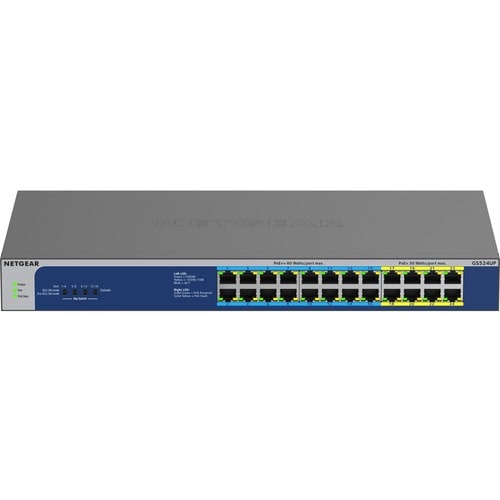

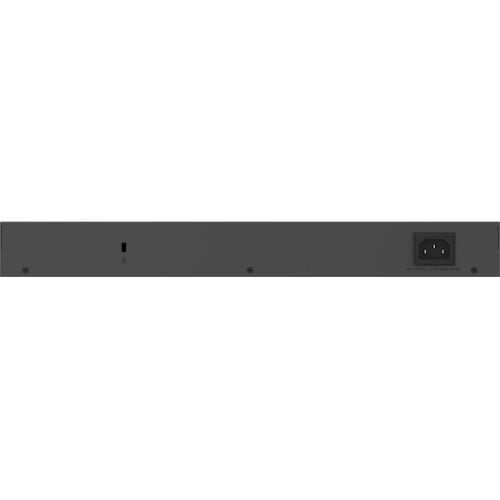

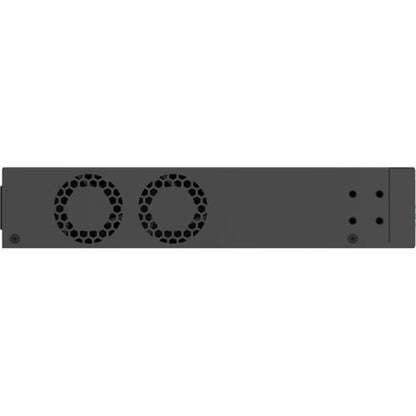

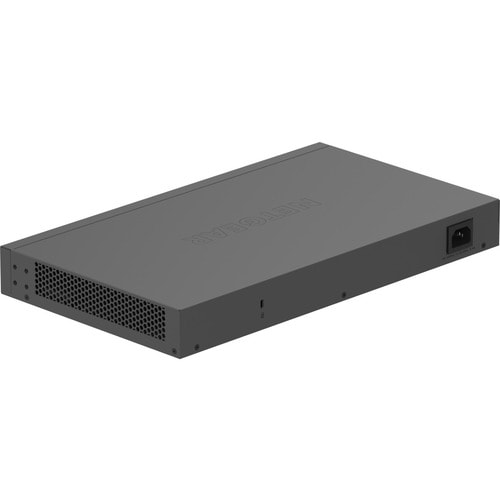

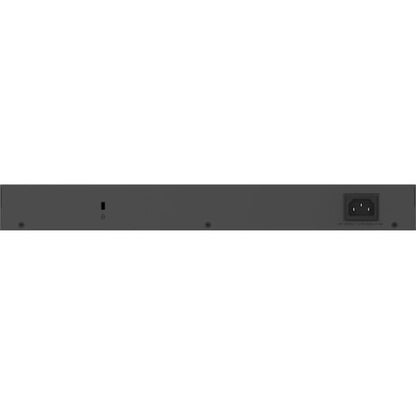

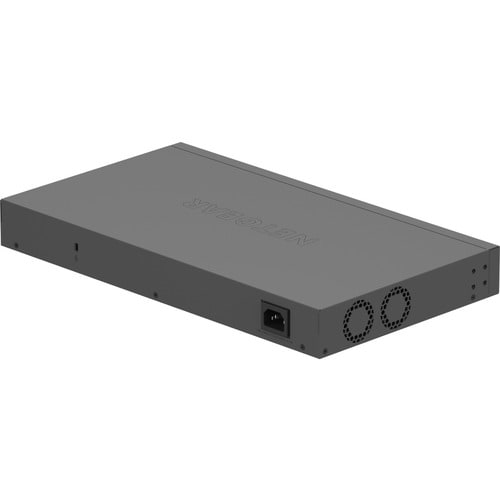

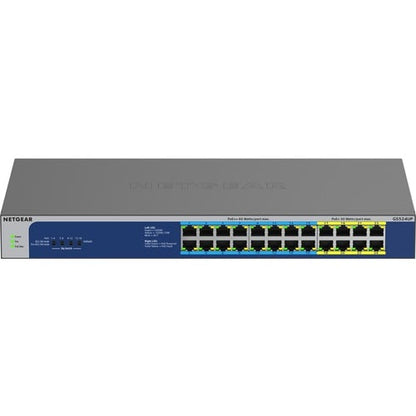

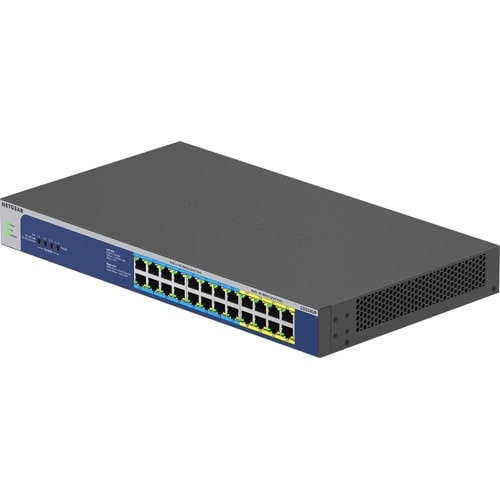

| Product Model | GS524UP |
| Product Name | GS524UP Ethernet Switch |
| Brand Name | Netgear |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |

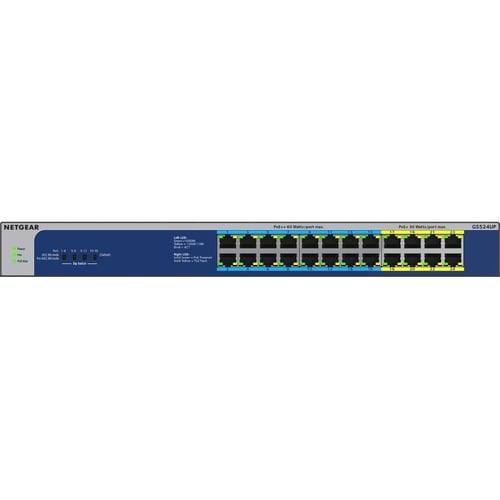

| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE++ |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Manageable | No |
| Network Technology | 10/100/1000Base-T |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Country of Origin | Thailand |
| Environmentally Friendly | Yes |
| NDAA Compliant | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Layer Supported | 2 |
| Weight (Approximate) | 6.83 lb |
| Height | 1.7" |
| Width | 15.4" |
| Depth | 8.7" |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 480 W |
