The SRW26USDP SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

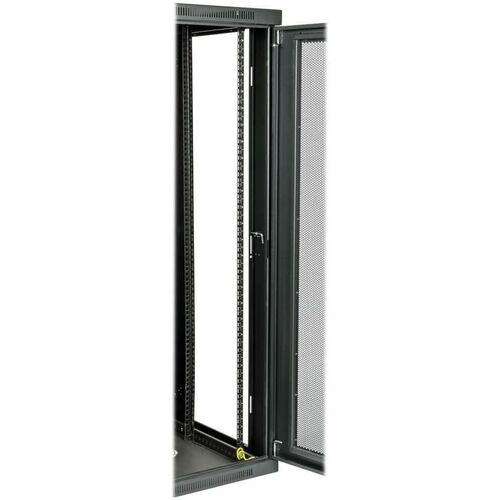

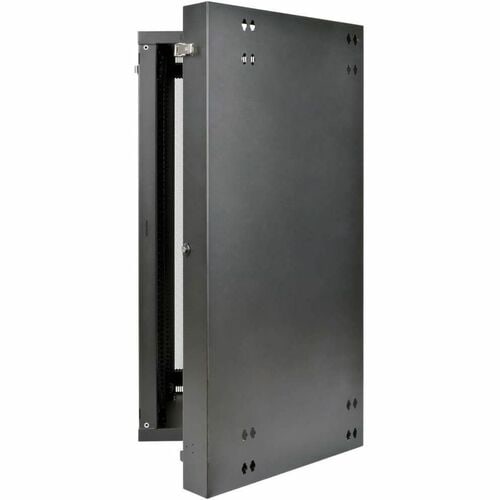

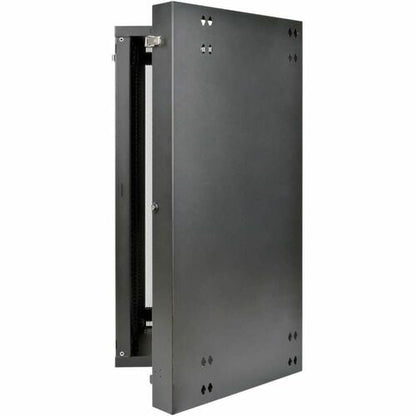

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW26USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.
The SRW26USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
More from the Manufacturer
Key Features
- Maximum load capacity of 250 lb.
- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 26U of 19 in. rack equipment up to 24.5 in. deep
Dimensions
| Height | 26.75 inches |
|---|---|
| Width | 28.5 inches |
| Length | 50.25 inches |
| Weight | 160 pounds |
| Application/Usage | UPS |
| Product Type | Rack Cabinet |
| Weight (Approximate) | 124.90 lb |
| Form Factor | Wall Mountable |
| Rack Width | 19" |
| Rack Height | 26U |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Assembly Required | No |
| Height | 49.6" |
| Width | 23.6" |
| Depth | 25.5" |
| Product Family | SmartRack |
| Rack Depth | 24.50" |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SRW26USDP |
| Manufacturer Website Address | http://www.eaton.com |
| Manufacturer | Eaton Corporation |
| Product Model | SRW26USDP |
| Product Name | SmartRack 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back |
| Product Line | SmartRack |
| Brand Name | Tripp Lite series |
| Package Contents |
|
| Country of Origin | China |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 124.90 lb |
| Rack Width | 19" |
| Rack Height | 26U |
| Height | 49.6" |
| Width | 23.6" |
| Depth | 25.5" |
| Maximum Weight Capacity | 250 lb |
| Static/Stationary Weight Capacity | 250 lb |
| Rack Depth | 24.50" |
| Product Color | Black |
| Color Family | Black |
