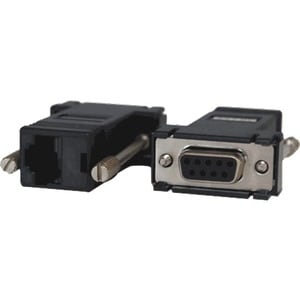

This adapter facilitates a crossover connection between a DB9 Female serial port and an RJ45 Female connector, specifically designed for Cisco devices utilizing the X2 pinout. It's ideal for connecting Cisco console ports (often RJ45) to standard PC serial ports (DB9 Female) in a DTE (Data Terminal Equipment) configuration, enabling console access for device management and troubleshooting. The 'X-OVER' designation indicates the necessary wiring reversal for a proper serial communication handshake between dissimilar devices.
Dimensions
| Height | 1 inches |
|---|---|
| Width | 1.8 inches |
| Length | 2.8 inches |
| Weight | 0.05 pounds |
| Cable Length | 6" |
| Product Type | Data Transfer Cable |
| Brand Name | Opengear |
| Cable Type | DB-9/RJ-45 |
| Connector Type on First End | RJ-45 Network - Female |
| Connector Type on Second End | DB-9 Serial - Female |
| Product Color | Black |
| Product Type | Data Transfer Cable |
| Manufacturer Part Number | 319015 |
| Manufacturer Website Address | http://www.opengear.com |
| Manufacturer | Opengear |
| Product Name | 319015 - DB9F to RJ45 Crossover Serial Adapter |
| Brand Name | Opengear |
| Country of Origin | Switzerland |
| Product Color | Black |
| Cable Length | 6" |
| Conductor | Copper |
| Cable Type | DB-9/RJ-45 |
| Connector Type on First End | RJ-45 Network - Female |
| Connector Type on Second End | DB-9 Serial - Female |
| Cable Configuration | Crossover |
| Connector on First End Details | 1 x RJ-45 Network - Female |
| Connector on Second End Details | 1 x 9-pin DB-9 Serial - Female |
