Slim Fit

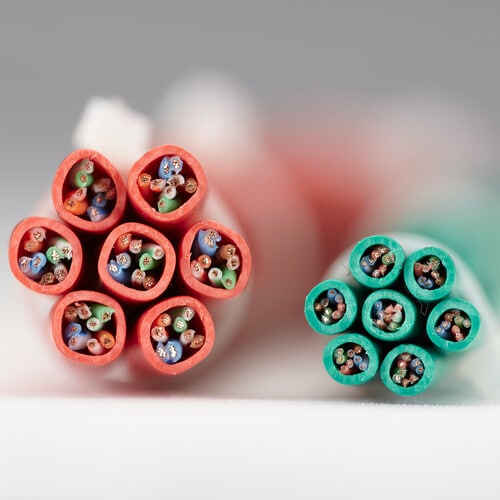

Black Box Slim-Net CAT6 patch cables feature a low-profile design that saves space and reduces clutter in crowded telecom rooms, data centers, and other high-density Gigabit networking applications. With a diameter of only .161 inches, these 28-AWG cables are almost half the size of typical 24-AWG cables. When you calculate the physical cable area in bundles and in patching connections, you actually save more than 50 percent space when compared to traditional cables.
Easier Cable Handling
Because there's more space between patched 28-AWG cables, there's more space for your fingers during installs and MACs. An added benefit is improved airflow and port visibility.
Reduced Cable Management
These 28-AWG cables have a small footprint and great flexibility, making it easy to route them without a cable manager. In addition, you can gain more than 50 percent space in vertical cable managers.
Conserve Rack Space

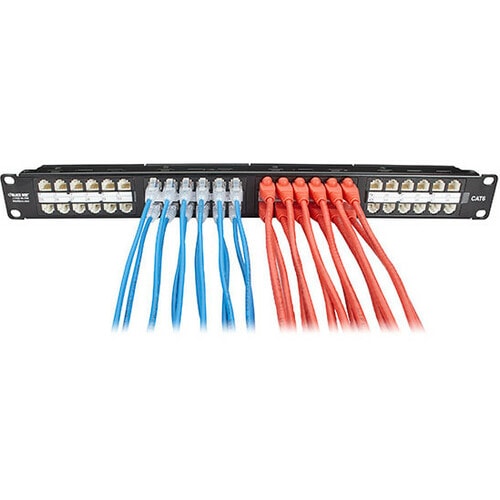

A major benefit of 28-AWG cables is they allow you to put more cables in high-density 1U or 2U patch panels, freeing up valuable rack units. You can also eliminate or reduce the number of horizontal cable managers, opening up even more space.
Big Performance in a Small Cable
Black Box Slim-Net cables meet ANSI/TIA-568-C.2 performance standards, ensuring the transmission of your Gigabit Ethernet signaling. They feature a robust construction that includes 50-micron gold-plated contacts for superior conductivity. These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's Slim-Net line of cabling gives you the flexibility to build your install however you want.
Key Features
- Slim-Net cables feature a low-profile design to save space in high-density applications
- 28-AWG cable is nearly half the diameter of standard cabling
- This cable reduces clutter, enhances airflow and improves heat dissipation
- Cabling meets ANSI/TIA-568-C2 performance standards
- Cable tested to 250-MHz CAT6 industry standard
- 50-micron gold-plated contacts provide superior conductivity

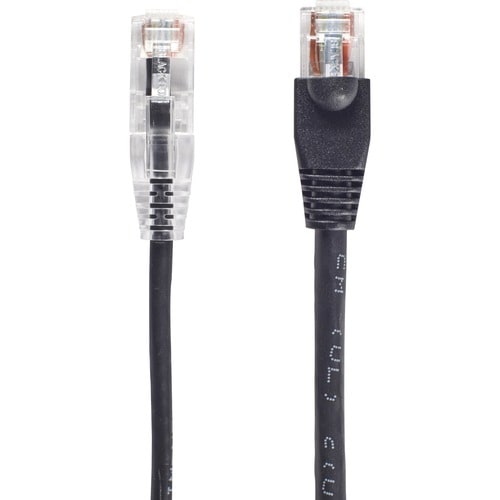

- Snagless boots prevent connector damage due to snags during installation
Dimensions
| Height | 0.5 inches |
|---|---|
| Width | 5 inches |
| Length | 7 inches |
| Weight | 0.05 pounds |
| Cable Length | 3 ft |
| Product Type | Network Cable |
| Brand Name | Black Box |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Product Color | Black |
| Product Type | Network Cable |
| Manufacturer Part Number | C6PC28-BK-03 |
| Manufacturer Website Address | http://www.blackbox.com |
| Manufacturer | Black Box Corporation |
| Product Name | Slim-Net Cat.6 UTP Patch Network Cable |
| Product Line | Slim-Net |
| Brand Name | Black Box |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Limited Warranty | Lifetime |
| Cable Length | 3 ft |
| Data Transfer Rate | 10 Gbit/s |
| Jacket Type | CM |
| Shielding | No |
| Features | Stranded |
| Features | Near End Cross Talk (NEXT) |
| Features | Damage Resistant |
| Features | Booted |
| Features | Strain Relief |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| American Wire Gauge | 28 AWG |
| Contact Plating | Gold |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
