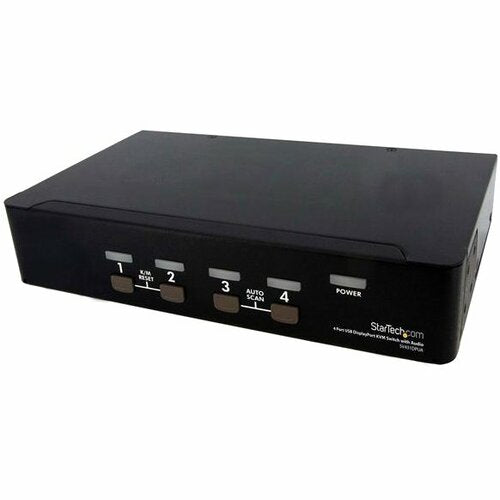

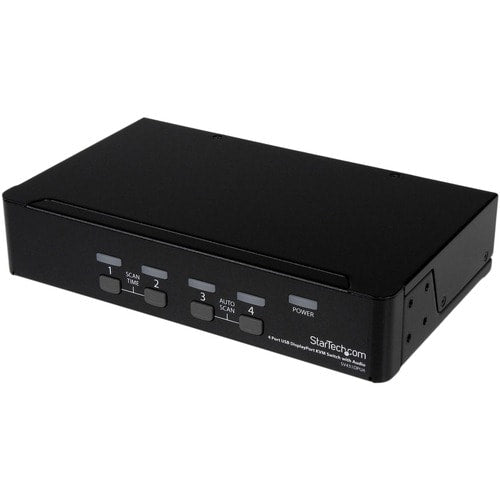

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

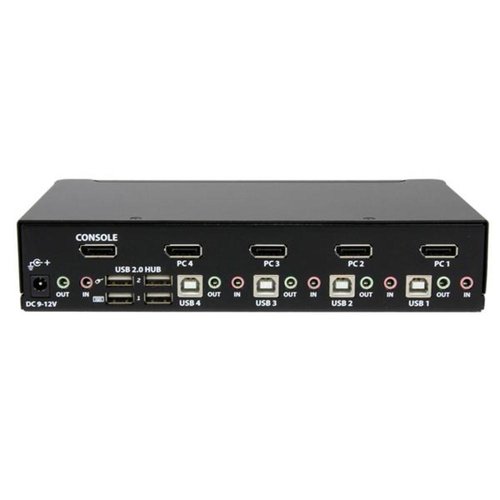

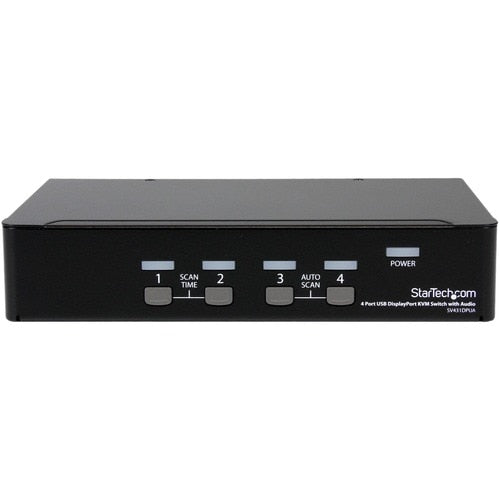

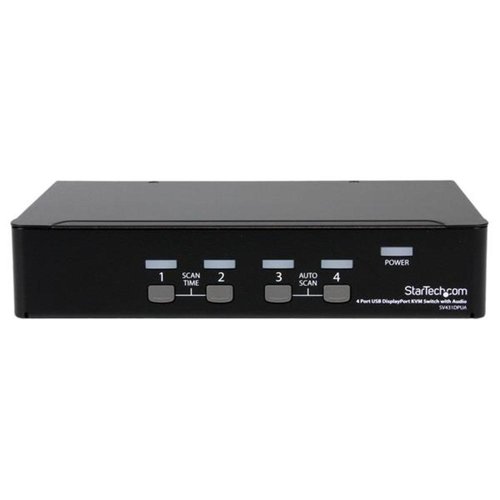

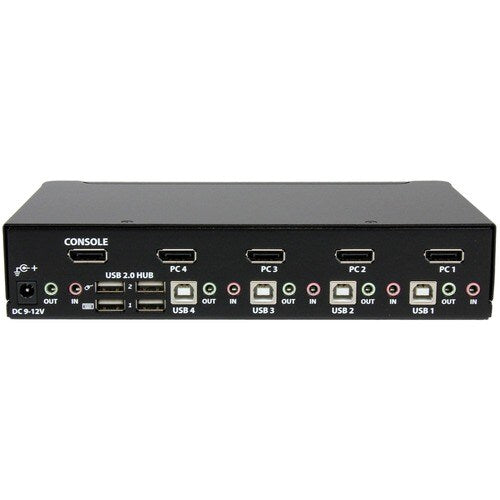

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Rackmount your KVM switch
If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM.
More from the Manufacturer
More from the Manufacturer
Key Features
- 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Hotkey and push-button switching
- Native DisplayPort resolution of 2560x1600 @60Hz; beyond 1080p
- OS independent - No driver or software required
- Supports a maximum resolution of 3840x2400 at lower refresh rates
- Supports DDC2B for monitor detection
- Supports hot-plug, un-plug and link status-failure detection
- Integrated 2 port USB 2.0 hub
- User-defined scan time intervals
Dimensions
| Height | 3.5 inches |
|---|---|
| Width | 8.5 inches |
| Length | 16.25 inches |
| Weight | 3.55 pounds |
| Product Type | KVM Switchbox |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Brand Name | StarTech.com |
| Input Voltage Range | 100V AC to 240V AC |
| Country of Origin | Taiwan |
| Maximum Video Resolution | 3840 x 2400 |
| USB | Yes |
| DisplayPort | Yes |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| TAA Compliant | Yes |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | SV431DPUA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 4 Port USB DisplayPort KVM Switch with Audio |
| Brand Name | StarTech.com |
| USB | Yes |
| Number of USB Ports | 8 |
| DisplayPort | Yes |
| Number of DisplayPorts | 5 |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Weight (Approximate) | 2.20 lb |
| Height | 1.7" |
| Width | 8.7" |
| Depth | 5.1" |
| Product Color | Black |
| Color Family | Black |
| Maximum Video Resolution | 3840 x 2400 |
| Graphic Mode | WQXGA |
| Limited Warranty | 3 Year |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
