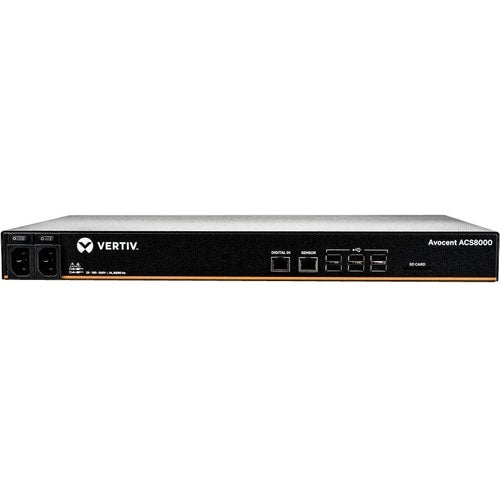

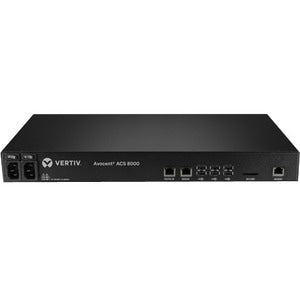

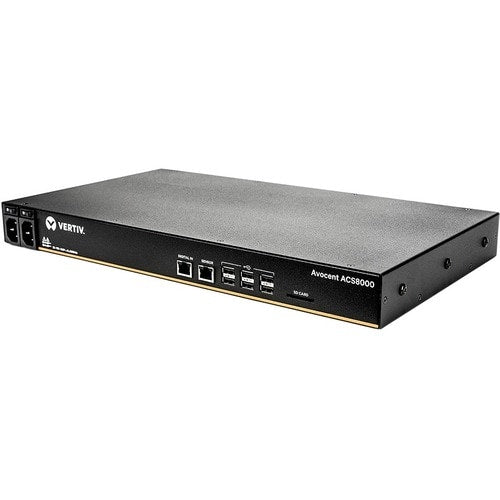

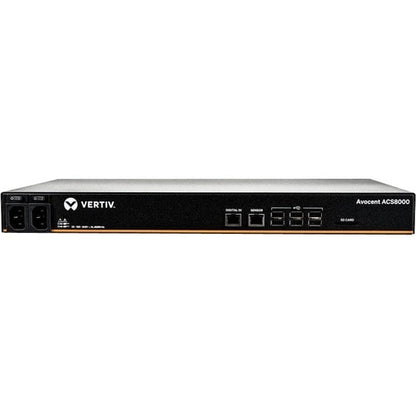

The Vertiv Avocent ACS8000 Advanced Console Server system integrates connectivity features for secure in-band and out-of-band network remote management of IT assets from anywhere in the world. It includes a 48 port console server and dual AC power supply. The serial console system helps maximize IT asset productivity while providing scalability and reducing operational costs for a range of applications from insurance and financial institutions, to education, government, healthcare, oil and gas, the military, retail/wholesale and more.
More from the Manufacturer
Key Features
- Serial console provides in-band and out-of-band connectivity and control for connected devices.
- Console's single-IP address management acts as IoT gateway for sensors and digital inputs/outputs.
- Console's single-point-of-entry security for downstream equipment has customizable access levels.
- Serial console comes with auto discovery, auto pin-out conversions, and native command settings.
- The 8 USB and environmental sensor ports support external devices and environmental monitoring.
Dimensions
| Height | 8.3 inches |
|---|---|
| Width | 13.7 inches |
| Length | 21.8 inches |
| Weight | 12.5 pounds |
| Product Type | Device Server |
| Form Factor | Rack-mountable |
| Brand Name | Vertiv AVOCENT |
| Network Standard | 1000Base-X |
| Network Standard | 10/100/1000Base-T |
| Wireless LAN | No |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 8 |
| Serial Port | Yes |
| Product Family | ACS 8000 |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Number of Serial Ports | 48 |
| Device Type | Console Server |
| Product Type | Device Server |
| Manufacturer Part Number | ACS8048DAC-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | ACS8048DAC-400 |
| Product Name | ACS8000 - Serial Console 48 port Console Server | Dual AC Power (ACS8048DAC-400) |
| Product Line | ACS |
| Product Series | 8000 |
| Brand Name | Vertiv AVOCENT |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 8 |
| Serial Port | Yes |
| Parallel Port | No |
| Number of Serial Ports | 48 |
| PoE (RJ-45) Port | No |
| Centronics Port | No |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Maximum Memory Supported | 16 GB |
| Standard Memory | 1 GB |
| Memory Technology | DDR3 SDRAM |
| Country of Origin | Mexico |
| Network Standard | 10/100/1000Base-T |
| Network Standard | 1000Base-X |
| Ethernet Technology | Gigabit Ethernet |
| Weight (Approximate) | 7.20 lb |
| Height | 1.8" |
| Width | 17.3" |
| Depth | 9.5" |
| Wireless LAN | No |
| Device Type | Console Server |
