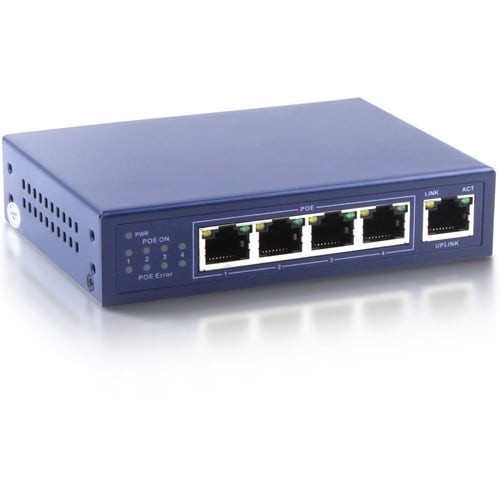

The 4XEM 4-Port PoE+ Ethernet Switch is a reliable and efficient solution for expanding your network. Designed to meet stringent industry standards, including IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3x (Flow Control), and IEEE 802.3af/at (PoE PSE), this switch ensures seamless connectivity and compatibility. Its compact desktop design features four RJ-45 ports that support PoE functionality, along with a dedicated uplink port for easy network expansion. Experience high-speed data transfer with a total bandwidth of 1.0 Gbps and a forwarding rate of 744K packets per second, ensuring smooth data flow. The switch also includes a 2K address database for efficient network management and provides comprehensive LED indicators for system power, PoE maximum power, and per-port status (link/activity, speed, PoE activity, and PoE error) for hassle-free monitoring. This package includes the switch, a DC power adapter, power cord, and user manual.
Dimensions
| Height | 2.3 inches |
|---|---|
| Width | 6.8 inches |
| Length | 11.1 inches |
| Weight | 1.75 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Supply |
| Layer Supported | 2 |
| Form Factor | Desktop |
| Brand Name | 4XEM |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 4 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | No |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 4XLS5004P |
| Manufacturer Website Address | http://www.4xem.com |
| Manufacturer | 4XEM Corporation |
| Product Model | 4XLS5004P |
| Product Name | 4-Port PoE 10/100Mbps Ethernet Switch |
| Brand Name | 4XEM |
| Token Ring Port | No |
| LRE Port | No |
| Uplink Port | Yes |
| Number of PoE (RJ-45) Ports | 4 |
| Bypass | No |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network |
| Network Technology | 10/100Base-TX |
| Twisted Pair Cable Standard | Category 5 |
| Media Type Supported | Twisted Pair |
| Certifications & Standards | IEEE Standards:
Safety:
Electromagnetic Emissions:
|
| Layer Supported | 2 |
| Weight (Approximate) | 10.58 oz |
| Product Color | Blue |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | No |
