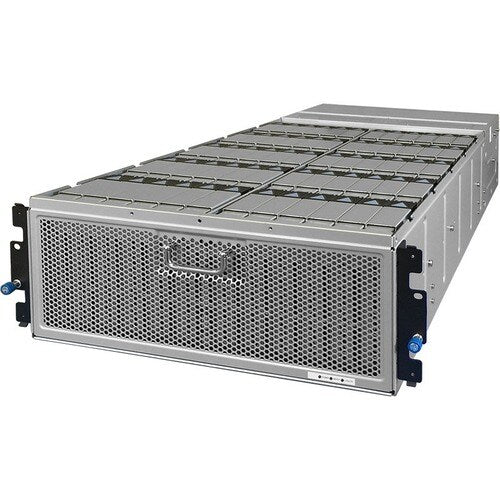

The HGST 4U60-60 G2 Storage Platform is engineered for data centers requiring robust, high-capacity storage expansion with exceptional power efficiency and high-availability. This advanced 4U enclosure offers a dense, scalable, and cost-effective solution, accommodating up to sixty (60) 3.5-inch Ultrastar® HDDs. Designed for demanding enterprise environments, it supports connectivity to up to eight (8) hosts via high-performance SAS 12Gb/s interfaces and features enterprise-class serviceability with fully hot-swappable components for uninterrupted operation.
This integrated storage platform has undergone rigorous qualification, testing, and certification to ensure seamless compatibility with a comprehensive range of HGST HDDs. It provides flexible configuration options, including SAS drives for critical high-availability (HA) applications and SATA drives for cost-optimized deployments. Furthermore, the enclosure can be enhanced with up to twelve (12) 800GB SSDs, enabling the creation of distinct performance tiers within a single platform for optimized data access and application responsiveness.
Dimensions
| Host Interface | 12Gb/s SAS |
| Product Type | Drive Enclosure |
| Form Factor | Rack-mountable |
| Brand Name | HGST |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Total Hard Drive Capacity Installed | 720 TB |
| Non-RAID Mode | JBOD |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | 1ES0212 |
| Manufacturer Website Address | http://www.wdc.com |
| Manufacturer | Western Digital Corporation |
| Product Model | 4U60G2 |
| Product Name | 4U60G2 Storage Platform |
| Brand Name | HGST |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Host Interface | 12Gb/s SAS |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 16.7" |
| Depth | 34.7" |
| Cooling Fan | Yes |
| Total Hard Drive Capacity Installed | 720 TB |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | 60 |
