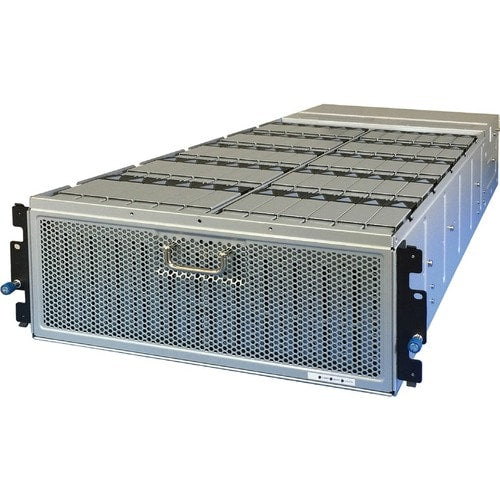

The HGST 4U60 G1 is a high-density, scalable, and cost-effective storage enclosure designed for demanding data center environments. It efficiently houses up to sixty (60) 3.5-inch Ultrastar® hard drives within a compact 4U rackmount form factor. Engineered for robust performance and high availability, this solution leverages 2x2x4-lane SAS 12Gb/s connectivity and supports a highly available (HA) architecture with all components being hot-swappable. This makes it an ideal choice for data centers requiring dense storage capabilities with minimal downtime, all while maintaining an optimized power profile.
Dimensions
| Height | 16.9 inches |
|---|---|
| Width | 22.8 inches |
| Length | 38.7 inches |
| Weight | 300 pounds |
| Host Interface | 12Gb/s SAS |
| Product Type | Drive Enclosure |
| Form Factor | Rack-mountable |
| Brand Name | HGST |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Total Hard Drive Capacity Installed | 360 TB |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | 1ES0059 |
| Manufacturer Website Address | http://www.wdc.com |
| Manufacturer | Western Digital Corporation |
| Product Model | 4U60 |
| Product Name | 4U60 Storage Enclosure |
| Brand Name | HGST |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Host Interface | 12Gb/s SAS |
| Weight (Approximate) | 198 lb |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 16.7" |
| Depth | 38.7" |
| Cooling Fan | Yes |
| Total Hard Drive Capacity Installed | 360 TB |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | 60 |
