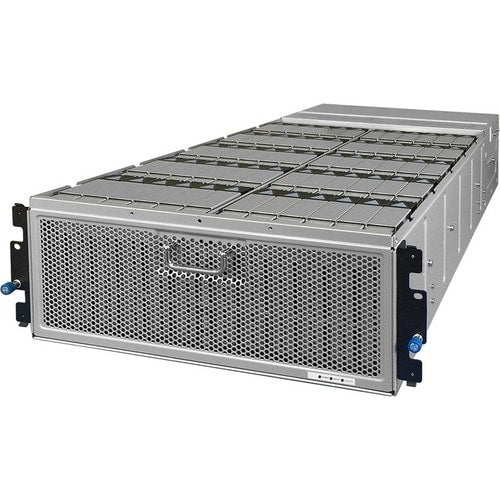

The HGST 4U60 G1 Storage Enclosure is a high-density, scalable, and cost-effective solution designed for data centers requiring significant storage expansion with a focus on low power consumption and high availability. This robust 4U enclosure houses up to 60 Ultrastar® 3.5-inch SATA 512e SED (Self-Encrypting Drive) modules, delivering a substantial 600TB of raw capacity. Engineered for demanding environments, it features dual, redundant 2x2x4-lane SAS 12Gb/s connectivity, ensuring high-speed data transfer and low latency. The design prioritizes high availability (HA) through its fully redundant, hot-swappable components, minimizing downtime and facilitating maintenance. Optimized for dense deployments and exceptional value, the 4U60 G1 is a trusted choice for modern data center storage infrastructure.
Dimensions
| Host Interface | 12Gb/s SAS |
| Product Type | Drive Enclosure |
| Form Factor | Rack-mountable |
| Brand Name | HGST |
| Wireless LAN | No |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Total Hard Drive Capacity Installed | 600 TB |
| Non-RAID Mode | JBOD |
| Product Type | Drive Enclosure |
| Manufacturer Part Number | 1ES0143 |
| Manufacturer Website Address | http://www.wdc.com |
| Manufacturer | Western Digital Corporation |
| Product Name | 4U60 Storage Enclosure |
| Brand Name | HGST |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Host Interface | 12Gb/s SAS |
| Wireless LAN | No |
| Weight (Approximate) | 198 lb |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 16.7" |
| Depth | 38.7" |
| Cooling Fan | Yes |
| Limited Warranty | 5 Year |
| Total Hard Drive Capacity Installed | 600 TB |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | 60 |
