This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.
For Demanding Environments Where No Fiber Connections Are RequiredUsing Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
- Cameras
- Sensors
- Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh ConditionsIndustrial features include:
- Operating Temperature Range: -40 C to 75 C
- IP-30 rated housing
- Vibration, shock, and free-fall standard testing

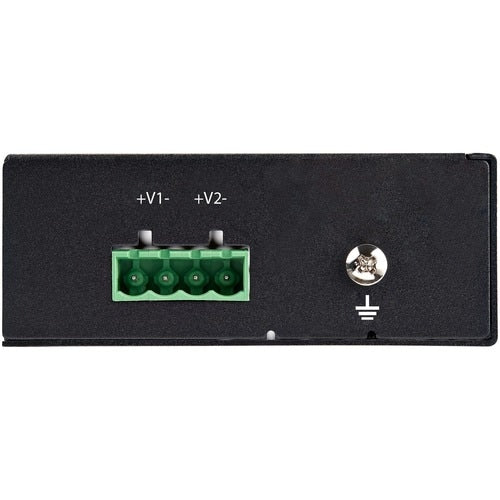

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.

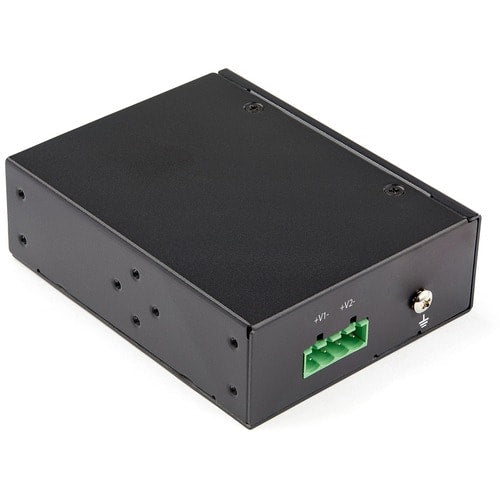

A Flexible & Easy-to-Deploy SolutionIncludes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.
More from the Manufacturer
More from the Manufacturer
Key Features
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Wall Mountable form factor for your convenience and simplicity of usage
- Gigabit Ethernet port for ultra-fast network speeds
- Twisted Pair media support for efficient and reliable connectivity
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Effectively reduces downtime with improved network performance
- Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
Dimensions
| Height | 2.5 inches |
|---|---|
| Width | 6.6 inches |
| Length | 8.4 inches |
| Weight | 0.9 pounds |
| Product Type | Ethernet Switch |
| Power Source | PoE+ |
| Layer Supported | 2 |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Power Consumption | 126 W |
| Brand Name | StarTech.com |
| Plug/Connector Type | Terminal Block |
| Country of Origin | Taiwan |
| Manageable | No |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IESC1G50UP |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Ethernet Switch |
| Brand Name | StarTech.com |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Network |
| Manageable | No |
| Network Technology | 10/100/1000Base-T |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Layer Supported | 2 |
| Weight (Approximate) | 5.30 oz |
| Length | 4.1" |
| Height | 1.3" |
| Width | 3.2" |
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
