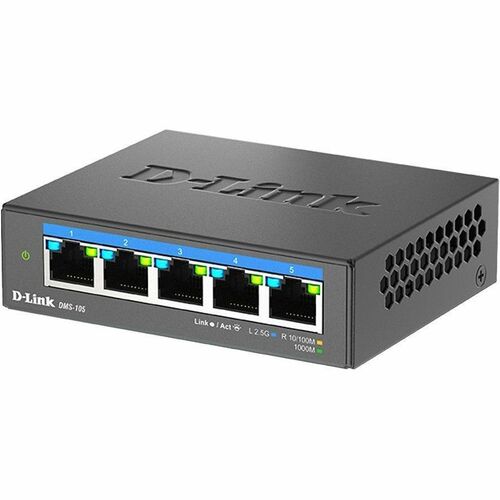

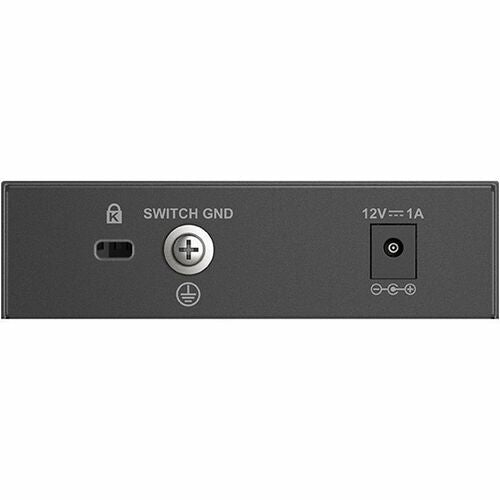

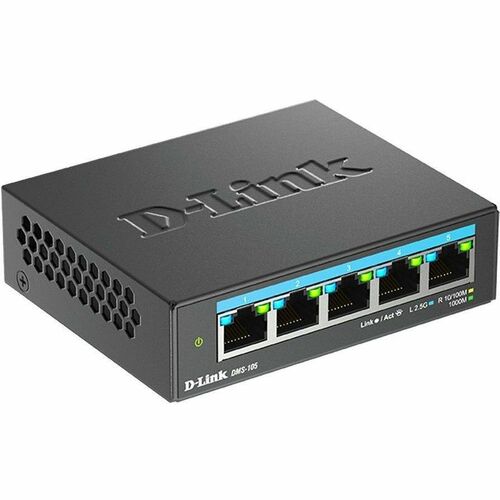

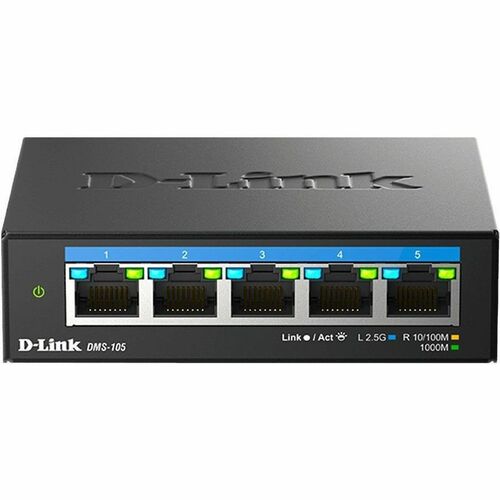

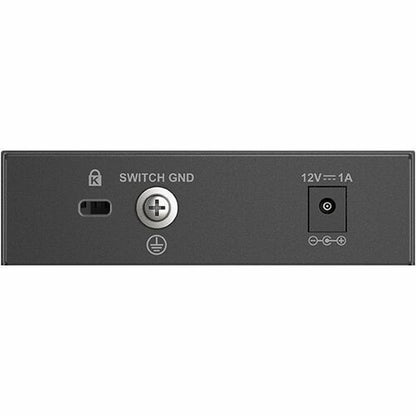

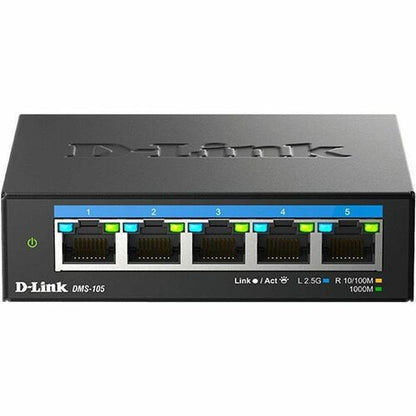

The DMS-105 5-Port Multi-Gigabit Unmanaged Switch is ideally suited for Small Office Home Office (SOHO) environments. With a durable design, silent operation, and plug-and-play functionality, the DMS-105 switch can be easily set up and be placed in almost any location where network connectivity is required. Support for IEEE 802.3az Energy-Efficient Ethernet (EEE), 802.1p Quality of Service (QoS), and multi-Gigabit Ethernet connection speeds provide advanced features in a compact package.
Integrated Networking
The DMS-105 switch uses auto-sensing ports, providing a small workgroup to flexibly connect Ethernet, Fast Ethernet, Gigabit and 2.5 Gigabit devices to create an integrated network. These ports detect the network speed via auto-negotiation allowing you to get the maximum speed possible for each device connected to your network.
Simplified Installation
All of the ports on the DMS-105 switch supports automatic MDI/MDIX crossover, eliminating the need for crossover cables. Each port can be plugged in directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DMS-105 switch features multiple front, easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status
Key Features
- Five multi-Gigabit LAN ports for high-speed wired connections
- Plug-and-play installation for convenience
- IGMP Snooping optimizes multicast data streams for bandwidth-intensive applications like IPTV
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- Power-saving mode
- RoHS compliant
- Fanless design
Dimensions
| Height | 3.7 inches |
|---|---|
| Width | 3.9 inches |
| Length | 4.3 inches |
| Weight | 0.42 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Adapter |
| Layer Supported | 2 |
| Power Consumption | 4.92 W |
| Brand Name | D-Link |
| Manageable | No |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 5.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DMS105 |
| Manufacturer Website Address | http://www.dlink.com |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DMS-105 |
| Product Name | 5-Port Multi-Gigabit Unmanaged Switch |
| Brand Name | D-Link |
| Total Number of Network Ports | 5.0 |
| Port/Expansion Slot Details | 5 x 2.5 Gigabit Ethernet Network Port |
| Manageable | No |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 2.5GBase-T |
| Media Type Supported | Twisted Pair |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Layer Supported | 2 |
| Weight (Approximate) | 8.42 oz |
| Height | 1.1" |
| Width | 3.2" |
| Depth | 4" |
| Features | Fanless |
