Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
NETGEAR listens to and supports the Pro AV community
- IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
- Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
- The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
- NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
- AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
- SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Enterprise-class hardware
- From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
- Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
- Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
- Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
Industry standard management
- Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
- SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
- NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Key Features
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- Supports layer 3 switching for enhanced performance and usability
- Rack-mountable form factor for your convenience and simplicity of usage
- Managed switch provides a reliable foundation for your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Effectively reduces downtime with improved network performance
- C14 plug/connector type for convenient usage with added dependability
Dimensions
| Height | 4 inches |
|---|---|
| Width | 22.5 inches |
| Length | 23.5 inches |
| Weight | 23.35 pounds |
| Product Type | Ethernet Switch |
| Power Source | AC |
| Power Source | PoE+ |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Form Factor | Rack-mountable |
| Form Factor | Table Top |
| Power Consumption | 550 W |
| Brand Name | Netgear |
| Plug/Connector Type | C14 |
| Expansion Slot Type | SFP+ |
| Manageable | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Product Family | AV Line M4350 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Total Number of Network Ports | 48 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 4.0 |
| Redundant Power Supply Supported | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Energy Efficiency Compliance | Energy-using Products Directive (EuP) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | GSM4352100NES |
| Manufacturer Website Address | http://www.netgear.com |
| Manufacturer | Netgear, Inc |

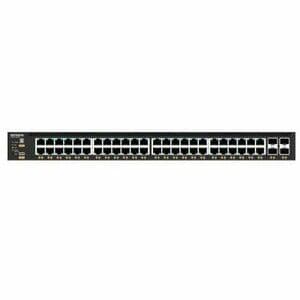

| Product Model | M4350-48G4XF |
| Product Name | AV Line M4350-48G4XF Ethernet Switch |
| Product Line | AV Line |
| Product Series | M4350 |
| Brand Name | Netgear |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slots |
| Manageable | Yes |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-X |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Energy Efficiency Compliance | Energy-using Products Directive (EuP) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Layer Supported | 3 |
| Weight (Approximate) | 15.85 lb |
| Height | 17" |
| Width | 14.4 ft |
| Depth | 15.7" |
| Compatible Rack Unit | 1U |
| Plug/Connector Type | C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 236 W |
