Artistic Immersion, Overwhelming Captivation | Seamless Large Screens with Extreme-Narrow Bezel

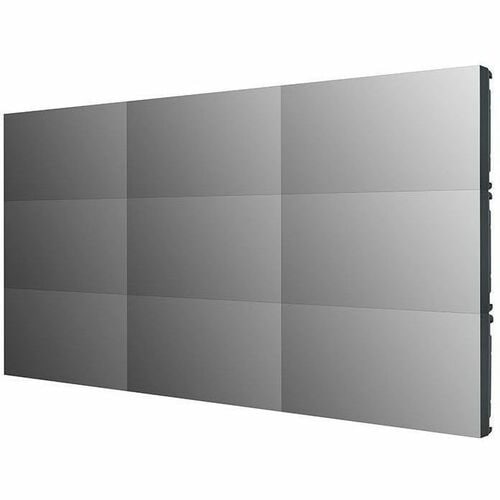

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
Image Gap Reduction
The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40°) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.
Wider Viewing Angle
LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in "full-white" mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Key Features
- Brightness(Typ.) : 500 nit

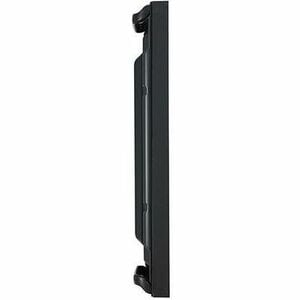

- Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)

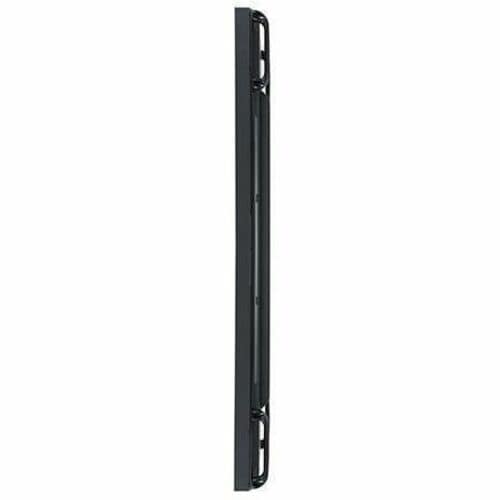

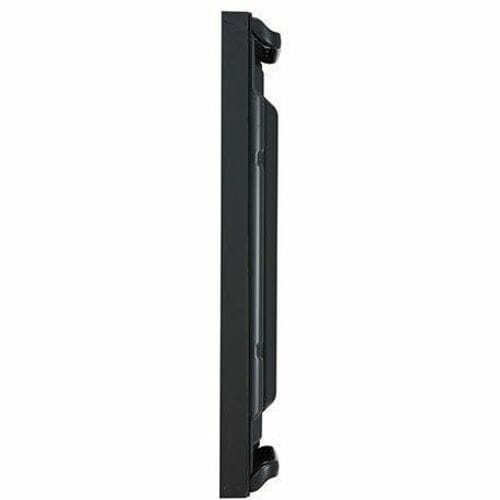

- Depth : 86.9 mm

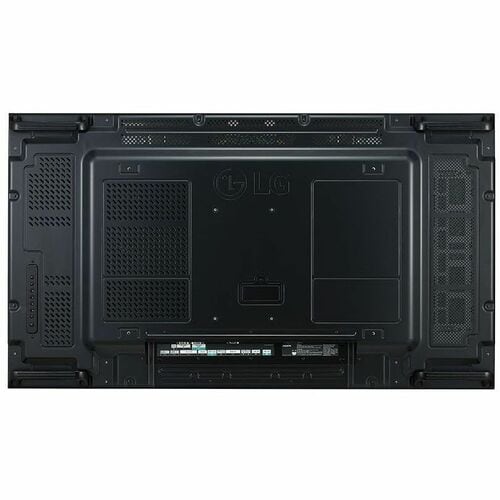

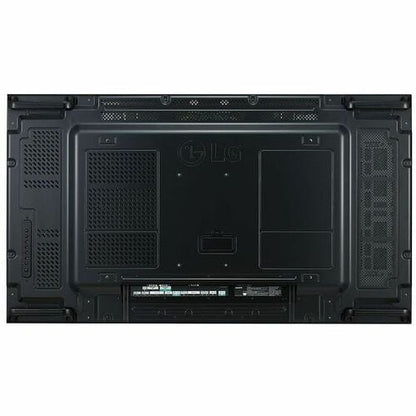

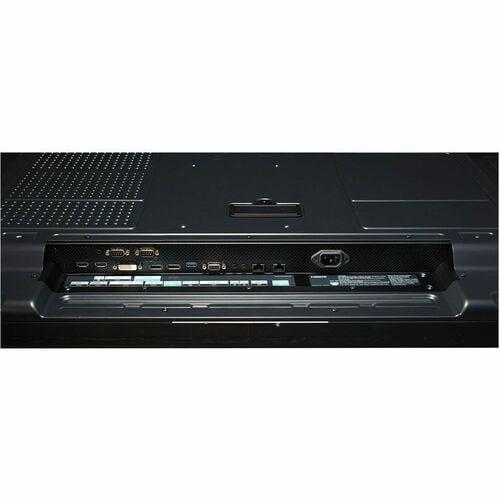

- Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Dimensions
| Height | 41.5 inches |
|---|---|
| Width | 61 inches |
| Length | 73.2 inches |
| Weight | 64 pounds |
| Product Type | Digital Signage Display |
| Display Resolution | 1920 x 1080 |
| Brightness | 500 Nit |
| Operating System | webOS 4.1 |
| Viewable Screen Size | 55" |
| Brand Name | LG |
| Number of Screens | 1 |
| Scan Format | 1080p |
| Display Screen Type | LCD |
| USB | Yes |
| HDMI | Yes |
| Backlight Technology | Direct LED |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 600 x 400 |
| Dynamic Contrast Ratio | 500,000:1 |
| Native Contrast Ratio | 1,000:1 |
| DVI | Yes |
| DisplayPort | Yes |
| Panel Technology | In-plane Switching (IPS) Technology |
| Energy Star | Yes |
| Product Color | Black |
| Color Family | Black |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Aspect Ratio | 16:9 |
| Display Resolution | 1920 x 1080 |
| Response Time | 8 ms |
| Number of Screens | 1 |
| HDCP Supported | Yes |
| Display Screen Type | LCD |
| Backlight Technology | Direct LED |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | 55VM5JH |
| Manufacturer Website Address | http://www.lg.com/us |
| Manufacturer | LG Electronics |
| Product Model | VM5J-H |
| Product Name | 55'' 500 Nits FHD Slim Bezel Video Wall |
| Brand Name | LG |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 2 |
| Number of USB 2.0 Ports | 1 |
| Serial | Yes |
| Number of DisplayPorts | 1 |
| Number of DVI Ports | 1 |
| Number of DVI-D Ports | 1 |
| RS-232C Input | Yes |
| Additional Information | Crestron Inside : Yes | W/B Setting by Grey scale : Yes |
| Package Contents | |
| Certifications & Standards | Class "B" CE |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Ethernet | Yes |
| Weight (Approximate) | 41.40 lb |
| Height | 26.9" |
| Width | 47.7" |
| Depth | 3.4" |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 600 x 400 |
| Product Color | Black |
| Color Family | Black |
| Bezel Color | Black |
| Brightness | 500 Nit |
| Color Depth | 10-bit |
| Scan Format | 1080p |
| Standard Refresh Rate | 60 Hz |
| Dynamic Contrast Ratio | 500,000:1 |
| Native Contrast Ratio | 1,000:1 |
| Features | Temperature Sensor |
| Features | Wake on LAN (WOL) |
| Features | Tile Mode Setting (15 × 15) |
| Features | FailOver |
| Features | Crestron Inside |
| Features | Auto Set ID |
| Bezel Width | 68.5 mil |
| Video Wall Compatible | Yes |
| HDCP Version | 2.2 |
| Bezel Width (Left) | 68.9 mil |
| Bezel Width (Right) | 29.1 mil |
