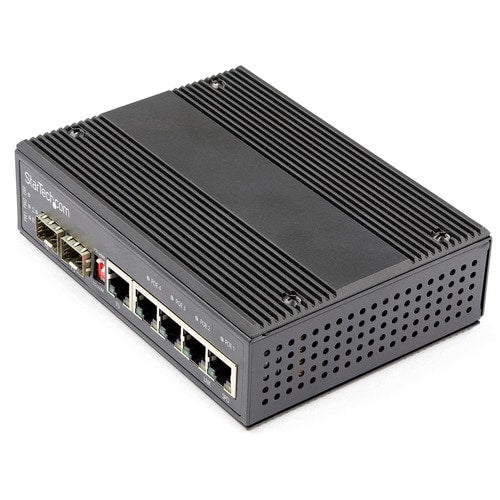

Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & Low VoltageIdeal for powering PoE devices in situations where a traditional power source is not available; it accepts power as low as 12VDC for applications such as transportation (auto/bus/rail) and solar. PoE output is boosted to PoE/PoE+ standards (IEEE 802.3af/at, 55V) in applications where non-standard 12V (or higher) power sources are available.
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
- Cameras
- Sensors
- Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Flexible Power Input & Low VoltagePower input flexibility between 12/24/48/56V DC and low voltage DC inputs reduces the complexities of installation by avoiding additional in-line devices to boost power before it reaches the switch.

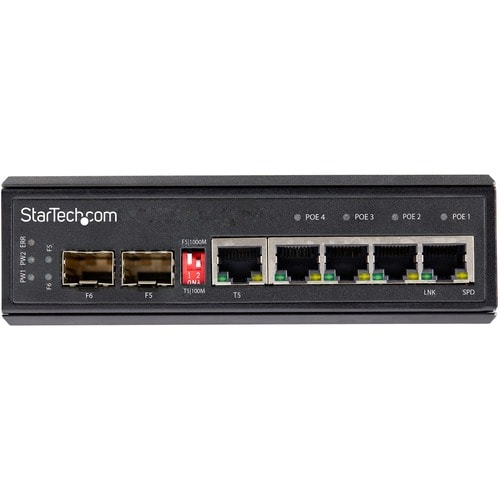

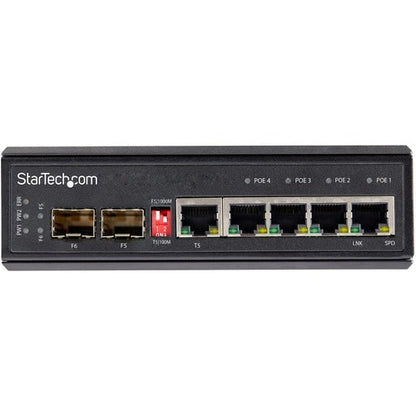

This unique switch allows for 5x RJ-45 ports (4x PoE) to be active + 1 SFP, or 4 x RJ-45 (all PoE) + 2 SFP, for 6 device connections total.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-Fall: EN 60068-2-32

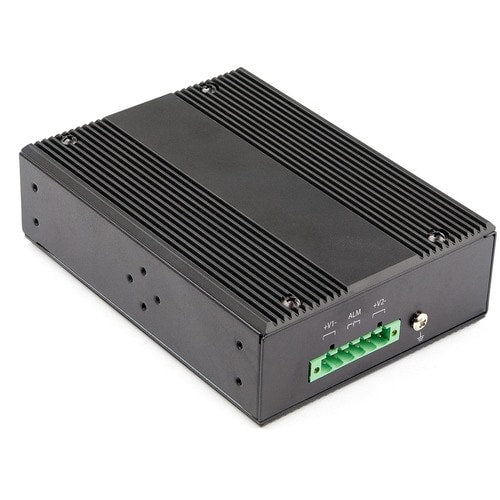

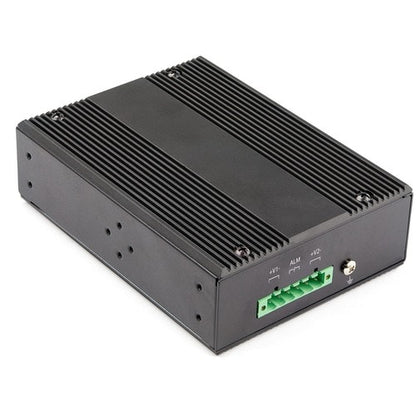

Includes an exterior aluminum heat sink for superior passive cooling; 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

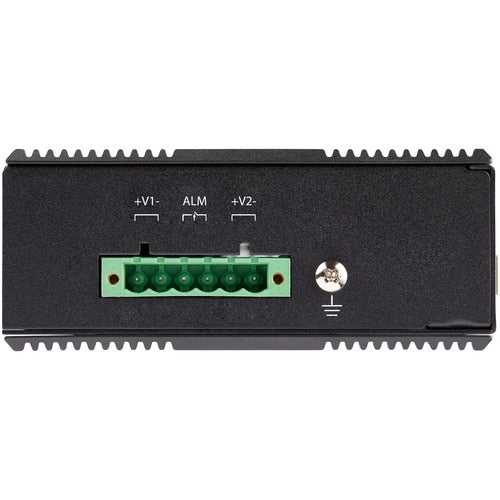

Dual Power InputsDual power inputs provide redundancy. Accepts dual terminal block power, allowing the product to be hardwired from multiple power sources for high availabilty applications.
The IES1G52UP12V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
Key Features
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Wall Mountable form factor for your convenience and simplicity of usage
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Optical Fiber media support ensures maximum convenience and great usability
- Quickly and easily set up a wired network with 5 networking ports
- Effectively increases available bandwidth on your network
- Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
Dimensions
| Height | 2.5 inches |
|---|---|
| Width | 6.5 inches |
| Length | 8.5 inches |
| Weight | 2.05 pounds |
| Product Type | Ethernet Switch |
| Layer Supported | 2 |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Brand Name | StarTech.com |
| Plug/Connector Type | Terminal Block |
| Expansion Slot Type | SFP (mini-GBIC) |
| Country of Origin | Taiwan |
| Manageable | No |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IES1G52UP12V |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Ethernet Switch |
| Brand Name | StarTech.com |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 2 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet TP/SFP Combo |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet Expansion Slot |
| Manageable | No |
| Network Technology | 1000Base-T |
| Network Technology | 1000Base-X |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Layer Supported | 2 |
| Weight (Approximate) | 1.55 lb |
| Length | 5.6" |
| Height | 1.7" |
| Width | 4.1" |
| Plug/Connector Type | Terminal Block |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
