Product Overview

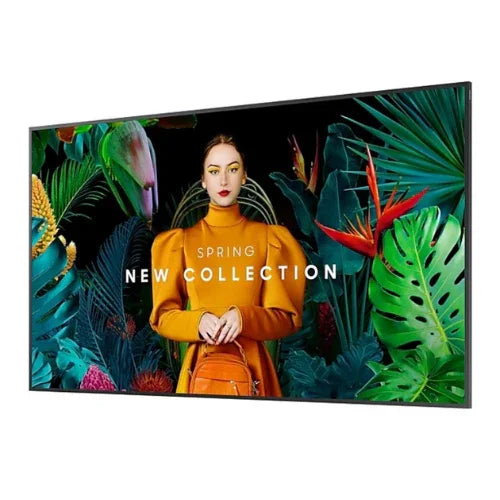

The Samsung QH75C display is a 75-inch Crystal UHD signage display that is designed to be used in commercial settings where the visual appeal and the operation of the display are important. It is aimed at use in retail, education, corporate, and public environments and is capable of providing a bright 4K image, a slim body, and built-in smart functionality, which makes content sharing, maintenance, and implementation easier. The QH75C combines both looks and functionality to ensure that your messages are always crisp, clear and businesslike.
Key Features and Benefits
Vivid 4K Displays: The QH75C features high-definition content of 3840 x 2160 resolutions and a VA display panel, which is perfect for signage or high-resolution displays.
High Brightness and Anti-Glare: Finish 700 nits average brightness with 25% haze non-glare finish makes the display readable even in ambient light or light.

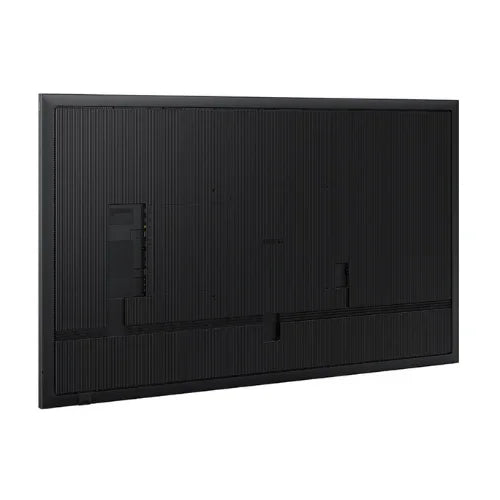

Uninterrupted Look and flexibility of mounting: The VESA mounting at the center and even bezel on all sides give the installation of a portrait or landscape a clean and secure look.
Slim Design This display is 28.5 mm deep in thickness (Ultra Slim), making it fit easily on walls or any other tight areas and still not lose visibility.
Business User Smart Tools SmartView+ is a wireless screen sharing feature, Smart Calibration is a control feature available by mobile application, and business modes (e.g., Director Mode, Custom Home) are features to simplify everyday usage.
Anytime, 24/7: Engineered to operate 24 hours, both hardware (VA panel and edge LED) and software (Tizen Enterprise) have been designed to work well with long working hours.
Connection and Control Multiple HDMI (×3) display ports, USB, RS-232, RJ-45, WiFi/Bluetooth to combine content sources, network control, and long-distance maintenance.
Energy & Environmental Credentials: Certified under Energy Star 8.0 and EPEAT; has an IP5X dust rating, which is sustainable and durable.
Technical Specifications
| Feature | Specification |
|---|---|
| Display Size (Diagonal / Measured) | 75″ class / ~74.5″ measured diagonal |
| Native Resolution | 3840 × 2160 (16:9) |
| Panel Type & Technology | VA panel, Edge-LED backlight |
| Typical Brightness | 700 nits |
| Contrast Ratio (Typical) | ~4000:1 |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface Finish / Haze | Non-glare with 25% haze |
| Orientation Modes | Landscape & Portrait mountable |
| Operation Hours | 24/7 continuous operation |
| Operating System / Internal Player | Tizen 7.0 / Built-in signage player |
| Processor / Storage | Quad-Core CA73 ~1.6 GHz + 16 GB storage (≈10 GB available) |
| Inputs / Connectivity | 3× HDMI 2.0, 1× DisplayPort 1.2, 2× USB-A (2.0), RS-232, RJ-45 (LAN), WiFi & Bluetooth |
| Audio | Built-in 2-channel speakers (2×10 W) |
| Mechanical / Mounting | VESA 400 × 400 mm; Bezel width ~13.4 mm; Ultra-slim depth ~28.5 mm |
| Physical Dimensions (W × H × D) | ~1682.3 × 960.4 × 28.5 mm |
| Weight (Set / Package) | ~34.2 kg (set), ~44 kg (with packaging) |
| Power / Environmental | Standby < 0.5 W; input 100–240 V, 50/60 Hz; IP5X dust-resistant; certifications: ENERGY STAR 8.0, EPEAT |
| Operating Conditions | Temperature 0–40 °C; Humidity 10–80% (non-condensing) |
Product Information
Samsung QH75C belongs to the Samsung QHC UHD Signage Series- a series of products designed with a combination of commercial display power and elegant Design utilized in business settings without causing any distraction to the office. The display is constructed based on an excellent performing VA panel with edge-LED backlighting, driving 700 nits of continuous brightness, which greatly improves the viewing of the display in light environments or in large space situations. The 25 percent haze surface minimizes the effects of glare and reflections that serve to eliminate contents in bright indoor lighting.
To be flexible, the display can be mounted in landscape or portrait. The centrally placed VESA mounting holes and uniform bezel on all sides make the installations similar and appealing to the eyes, whether mounted on a wall or a combination to form a video wall. The Ultra Slim Depth (28.5 mm) implies that the QH75C is a flat and sleek product, and does not add any bulk to the screen size.
Smart features are abundant. It uses Tizen 7.0 and has an in-built signage player (MagicInfo/Samsung signage architecture) to support wireless screen sharing through SmartView+, remote calibration using the mobile application, and business management features such as “Custom Home” and Director Mode. They are especially convenient in the facilities where the displays are commonly controlled by IT or accessed by non-technical employees.
At the hardware level, the connectivity comprises various HDMI ports, DisplayPort, USB ports, LAN and wireless. Included speakers (2 x 10 W) give simple audio play, which can be used to announce or provide the background sound; it eliminates the necessity of external speaker systems in most signage solutions.
QH75C is designed and is costly to work all day and all night. It is rated at a full 24/7 duty cycle, IP5X dust-resistant, and environmental (Energy Star and EPEAT) to handle environments with high demands, such as storefronts of retail centers, airports, transportation centers, exhibit halls, and control rooms.
