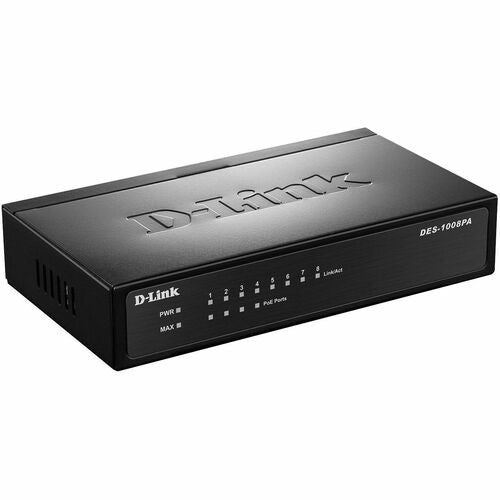

The DES-1008PA 8-Port Fast Ethernet PoE Desktop Switch enables both home and office users to easily connect and supply power to Power over Ethernet (PoE) devices such as wireless Access Points (APs), IP cameras, and IP phones while adding more Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. Built with home and small business users in mind, this compact PoE switch operates silently, making it ideal for use in virtually any room or office.
Power over Ethernet IEEE 802.3af
The DES-1008PA features 4 10/100BASE-TX ports that support the IEEE 802.3af PoE protocol. Each of the 4 PoE ports can supply up to 15.4 Watts, a total PoE budget of 52 Watts, allowing users to attach an IEEE 802.3af compliant device to the DES-1008PA without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
Superior Performance

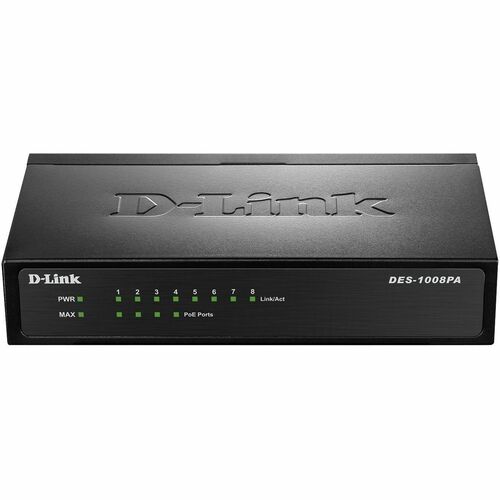

No configuration is required and installation is quick and easy. Support for Auto-MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10 or 100 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans so you can be sure of silent operation wherever it is installed. The DES-1008PA also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. With wire-speed filtering and store-and-forward switching, the DES-1008PA also maximises network performance while minimising the transmission of bad network packets. Combining the convenience of PoE, superior performance, and ease of use, the 8-Port Fast Ethernet PoE Desktop Switch is the ideal choice for adding PoE devices to either a home or small business network.
Hassle-Free Setup
The 8-Port Fast Ethernet PoE Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. Connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.
Compact and Silent

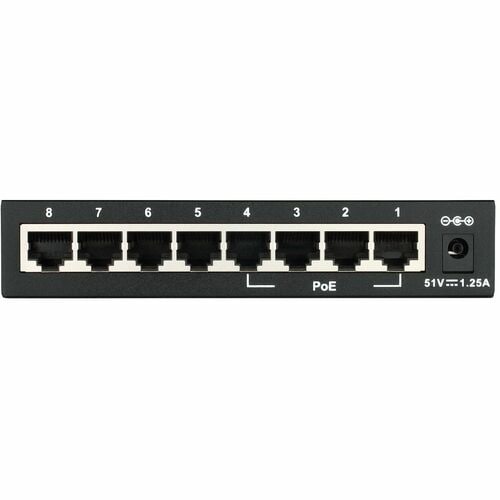

The DES-1008PA has a compact and silent design, meaning it can be placed in any location. The power connector and ports are all located at the rear of the switch allowing the cables to be tucked away conveniently. The DES-1008PA is fanless, so the switch operates silently, allowing you to work or play without unnecessary noise distractions.
Key Features
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The desktop installation makes it ideal for deployments outside the wiring closet
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Electrical power is transmitted along with data in a single cableto devices such as Access Points, IP cameras or IP phones
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
Dimensions
| Height | 2.75 inches |
|---|---|
| Width | 8.25 inches |
| Length | 10.75 inches |
| Weight | 1.95 pounds |
| Product Type | Ethernet Switch |
| Power Source | Power Adapter |
| Layer Supported | 2 |
| Form Factor | Desktop |
| Brand Name | D-Link |
| Manageable | No |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 8 |
| PoE (RJ-45) Port | Yes |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DES1008PA |
| Manufacturer Website Address | http://www.dlink.com |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DES-1008PA |
| Product Name | 8-Port Fast Ethernet PoE Unmanaged Desktop Switch |
| Brand Name | D-Link |
| Number of Network (RJ-45) Ports | 4 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 4 |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Fast Ethernet Network |
| Manageable | No |
| Network Technology | 10/100Base-TX |
| Twisted Pair Cable Standard | Category 5 |
| Media Type Supported | Twisted Pair |
| Additional Information |
|
| Environmentally Friendly | Yes |
| Layer Supported | 2 |
| Weight (Approximate) | 1 lb |
| Height | 1.1" |
| Width | 6.7" |
| Depth | 3.9" |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 52 W |
