Product overview

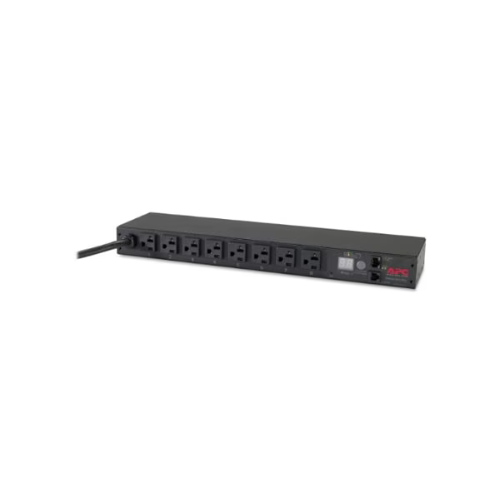

The APC AP7801B is a second generation switched rack PDU, formatted in 1U horizontal, that has the ability to provide reliable power distribution as well as outlet-level control. It fits network closets, edge racks, and lab equipment where you would like to perform remote rebooting, sequencing of power to orderly power usage, and have a clear view of load to avoid tripped power breakers.
Built to be simple to deploy and scale, it has built-in network monitoring and user-configured alarms and an environmental sensor port to support temperature and humidity probes. Tool-free services, strap-tightening, and well-labeled sockets allow maintaining the installation clean and maintainable.
Key features
-
On/off switching at the outlet level to be used in remote rebooting and staged restart/shut down.
-
Active monitoring of power and setting of user thresholds and alerts.
-
U horizontal cabinet to accommodate narrow racks and network cabinets.
-
optional temperature/humidity probe sensing to the environment.
-
Web, SNMP, and CLI remote management safety.
-
Input and cord-retention brackets will be locked to minimize accidental disconnection.
Technical specifications
|
Category |
Details |
|
Model |
AP7801B |
|
Type |
Switched rack PDU (Gen 2) |
|
Form factor |
1U horizontal |
|
Input voltage |
208–240 V, single-phase |
|
Max current |
16 A |
|
Input plug |
IEC 60320 C20 or region-equivalent (model variant dependent) |
|
Output receptacles |
8 × IEC 60320 C13 (typical for this class) |
|
Outlet control |
Per-outlet on/off and reboot; outlet grouping; sequencing |
|
Metering |
Aggregate load monitoring (A, W, kWh); per-outlet energy visibility on supported firmware |
|
Network & management |
Ethernet; web UI, SNMP, CLI; event logs and notifications |
|
Alarms |
User-defined thresholds with email/SNMP traps |
|
Environmental sensing |
Port for temperature/humidity probe (optional) |
|
Mounting |
19″ rack ears and brackets; cord-retention hardware included (kit dependent) |
|
Dimensions (H × W × D) |
~1.75″ × 17.0″ × 7–10″ (approx., model variant dependent) |
|
Operating environment |
Indoor IT racks; standard data-center temperature and humidity ranges |
|
Typical use cases |
Remote reboot, power sequencing, capacity monitoring in network/edge racks |
