Product Description

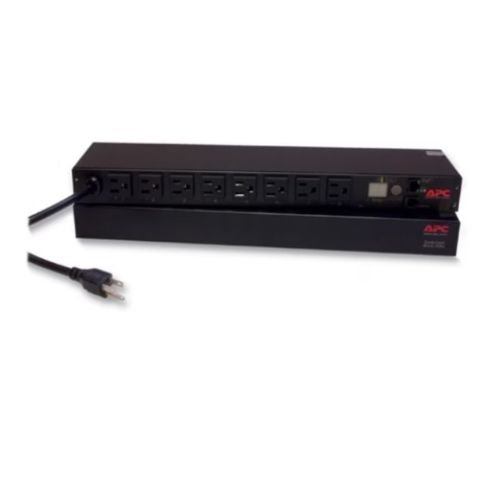

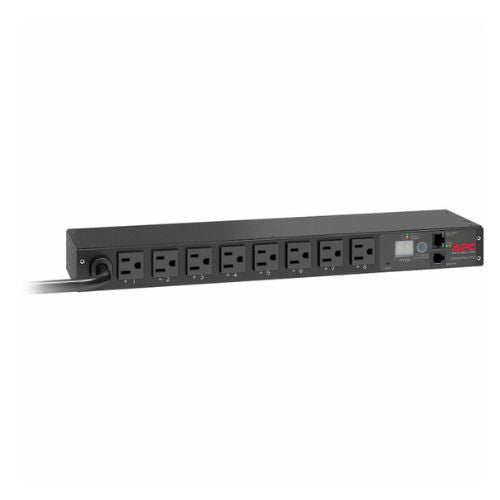

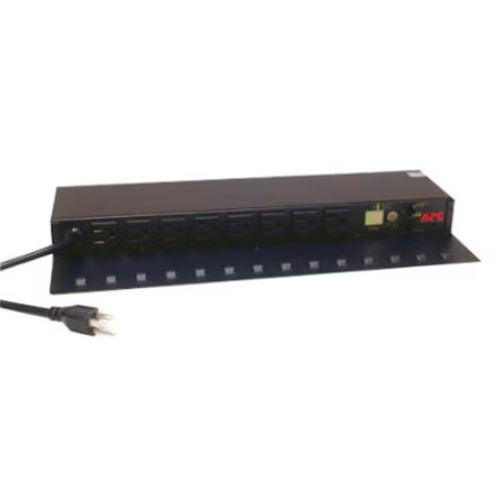

The APC AP7900B NetShelter Switched Rack PDU is a trusted and innovative power distribution product that is used in data centers, network cupboards, and high-performance IT environments. This rack-mount unit offers switched outlet-level control, enabling administrators to remotely control and monitor the equipment they are connected to to improve uptime and energy usage.
The AP7900B has 12 fully controllable NEMA 5-15R outlets, allowing individual outlet switching to provide the ability to remotely reboot equipment and to provide optimal power sequencing. Its 1440 W (15A, 100/120 V) is an efficient power source to power vital IT equipment, as well as providing real-time load tracking and environmental consciousness.
This PDU has a 12-foot power cord, which provides it with the flexibility of being installed in standard racks. The integrated network management is provided with secure access via web (or SNMP or telnet) interfaces to permit easy control at the distributed locations. The AP7900B offers a stable delivery of power and active control to reduce downtime and the operation costs through its robust components and the reliable infrastructure already tried and demonstrated by APC.
Key Features
-
Switched Outlet Control: Turn individual outlets on and off; turn off, turn on, or reboot single outlets to control energy use.
-
Network Management Interface: Access network interface (authentically) through web, SNMP, or command-line interface, to monitor and control the PDU.
-
Load Monitoring: Load balancing may be performed with the help of real-time power consumption information to load balance and prevent overloads.
-
1U Rack Design: This rack design is compact and can fit in dense rack set-ups.
-
Power Capacity: 1440W at 100/120 V and 15A.
-
Simple to install: The 12 ft power cord can be set in place in any way within a rack.
-
Environmental Integration: It uses APC ecological sensors to monitor the temperature and humidity.
-
Stable Structural Construction: constructed to be stable and predictable in mission-critical applications.
Technical Specifications
|
Feature |
Specification |
|
Brand |
APC |
|
Model |
AP7900B |
|
Product Type |
Switched Rack PDU |
|
Rack Height |
1U |
|
Form Factor |
Rack-mountable |
|
Input Voltage |
100 V / 120 V AC |
|
Maximum Input Current |
15 A |
|
Power Capacity |
1440 W |
|
Outlets |
12 × NEMA 5-15R (Switched) |
|
Input Connection Type |
NEMA 5-15P |
|
Cord Length |
12 ft (3.66 m) |
|
Network Management |
Web, SNMP, Telnet, SSH |
|
Display |

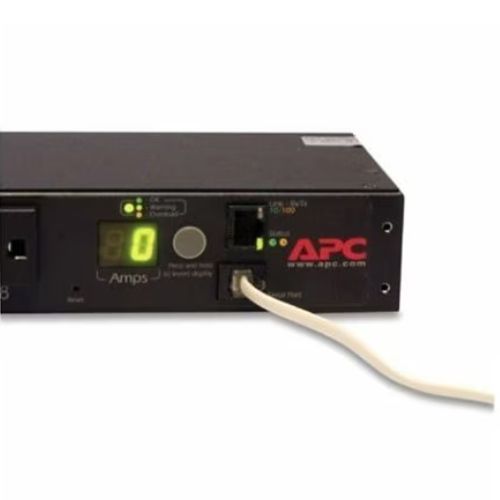

LED load indicator |
|
Mounting |
Horizontal (1U) |
|
Color |
Black |
|
Dimensions (W × D × H) |
Approx. 17.5 × 9 × 1.75 in |
|
Weight |
Approx. 2.7 kg |
|
Operating Environment |
0 °C–45 °C |
|
Warranty |
2-Year Manufacturer Warranty |
