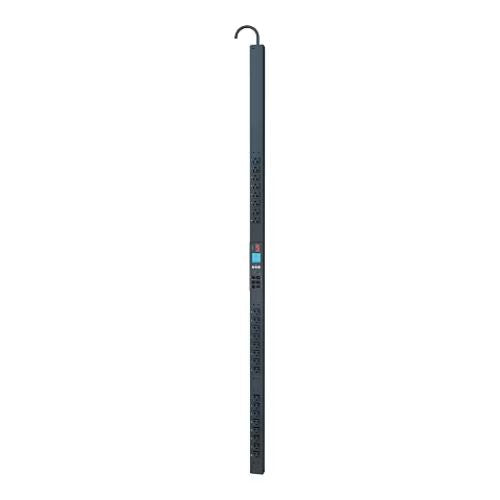

Product Overview
APC AP8830 NetShelter Metered Rack PDU is a high-performance power distribution unit designed with correct measuring of power consumption in server rooms, data centers, and enterprise data systems. The PUD is designed with 24 NEMA 5-20R outlets and a NEMA L5-20P input plug to deliver quality and stable 100-120 V AC power to a total of 1920 watts.
The 0U rack-mountable design allows it to be put in the rack space that would otherwise be occupied by three more units, and it also has accessible outlets. The built-in metering display makes it possible to monitor the local load in real time, preventing IT administrators from overloading the equipment and ensuring efficient power distribution. The AP8830 is designed with reliability and would be suitable for dense network equipment and other installations that are critical to the operations of the business.
Key Features
-
Metered Power Distribution: The Metered power distribution is used to optimize power by providing real-time local inspection of the load connected.
-
24 x NEMA 5-20R Outlets: Multiple device-friendly, stable power supply.
-
High Capacity: Offers up to 1920 watts total output power, 100-120 V.
-
NEMA L5-20P Plug: This is a connection that provides a good and stable power connection.
-
0U Rack-Mount Design: Maximizes rack space and also fits easily in vertical mount applications.
-
Long Life Build Quality: The device is made of strong components to ensure durability and reliability in harsh IT conditions.
-
LED Display: Shows the current load to proactively manage power.
-
Simple Assembly: APC NetShelter racks have tool-less mounting brackets that make them easy to set up.
-
Improved Power efficiency: Consistency in monitoring to minimize downtimes and balancing of the loads.
-
Ideal in Data Centers: Optimized in servers, network equipment, and storage devices that need to be managed reliably in terms of power.
Technical Specifications
|
Feature |
Specification |
|
Brand |
APC |
|
Model |
AP8830 |
|
Product Type |
Metered Rack Power Distribution Unit (PDU) |
|
Input Plug Type |
NEMA L5-20P |
|
Output Receptacles |
24 x NEMA 5-20R |
|
Input Voltage |
100–120V AC |
|
Maximum Output Power |
1920W |
|
Maximum Input Current |
20A |
|
Cord Length |
9.84 ft (3 meters) |
|
Display Type |
Digital load meter |
|
Rack Mounting |
0U Vertical |
|
Mounting Compatibility |
APC NetShelter and standard IT racks |
|
Frequency |
50/60 Hz |
|
Color |
Black |
|
Operating Temperature |
0°C – 45°C (32°F – 113°F) |
|
Dimensions (H x W x D) |
63.7 x 2.2 x 1.7 in (approx.) |
|
Weight |
6.6 lbs (approx.) |
|
Part Number |
AP8830 |
