Product Overview

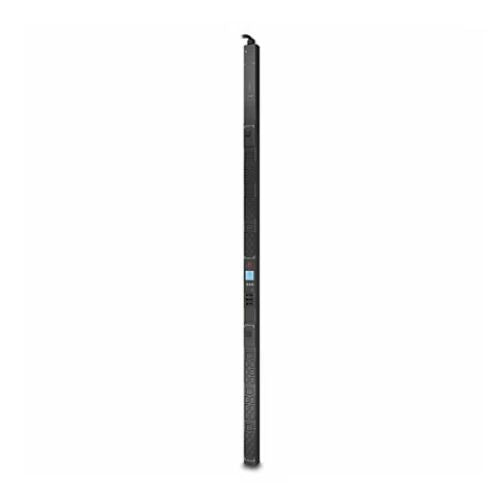

APC AP8841 NetShelter Metered Rack PDU 2G is an effective, efficient, and intelligent power distribution solution with high-density IT applications in data centres and enterprise networks. It can be mounted on a 0U vertical rack and has six IEC C19 outlets with power up to 30A at 200 V to provide high-performance servers with strong power, as well as a variety of network equipment.
With real-time power monitoring, designed to assist IT administrators to balance loads, prevent overloads and conserve energy, this second-generation Metered Rack PDU is available in an easy-to-read local display. Circuit-level metering and integrated overload protection make the systems safer and less prone to downtimes.
The 9.84 ft (3 m) power cord of the PUD has a secure connection and enables the PUD to be placed flexibly in server racks. The AP8841 is an industrial-quality construction that is very durable and reliable, and it can withstand the high performance and safety requirements of APC.
The APC AP8841 is the ideal solution for setting up systems where constant observation of power use and effective power control is needed, and also needs reliability, scalability, and intelligent monitoring of mission-critical processes.
Key Features
-
High-Capacity Power Distribution: 30A, 200 V rating offers stable and strong distribution of power to power-intensive data centre equipment.
-
Six C19 Outlets: The outlets support the delivery of power to numerous servers, switches, and network appliances at the same time.
-
Metered Monitoring: Built-in display is a real-time load monitoring display to allow accurate control of energy.
-
Protection of Overload: Overload protection helps in preventing power surges and damage to equipment with built-in overload protection.
-
Zero U Rack Design: takes up less rack space with a vertical 0U mounting design.
-
Durable Construction: It is built to be used over a long period in an enterprise and data centre setting.
-
Long Power Cord: The 9.84 ft power cord is flexible enough to be installed in both the standard and deep server racks.
-
Simple Control: The local current meter assists in the balancing of loads and preventing the overloading of circuits.
-
Dependable Reliability: Designed according to strict APC requirements of quality and uptime guarantees.
-
Energy Saving: Aid in the energy-saving objectives of facilities is geared toward energy optimality.
Technical Specifications
|
Feature |
Specification |
|
Brand |
APC |
|
Model |
AP8841 |
|
Product Type |
Metered Rack PDU 2G |
|
Rack Height |
0U |
|
Input Current |
30A |
|
Input Voltage |
200V AC |
|
Output Connections |
6 × IEC C19 |
|
Output Voltage |
200V AC |
|
Load Capacity |
19200 VA |
|
Cord Length |
9.84 ft (3 m) |
|
Mounting Type |
Vertical (0U) Rack-mountable |
|
Overload Protection |
Yes |
|
Display Type |
Local digital current meter |
|
Monitoring Type |
Metered (current and load) |
|
Communication Ports |
Local display only |
|
Operating Frequency |
50/60 Hz |
|
Form Factor |
Rackmount |
|
Material |
Metal chassis |
|
Color |
Black |
|
Dimensions (H × W × D) |
70 × 2.2 × 1.7 in (1778 × 56 × 44 mm) |
|
Weight |
10.6 lb (4.8 kg) |
|
Compliance |
UL Listed, CE Certified |
|
Warranty |
2-Year Limited Warranty |
