Product overview

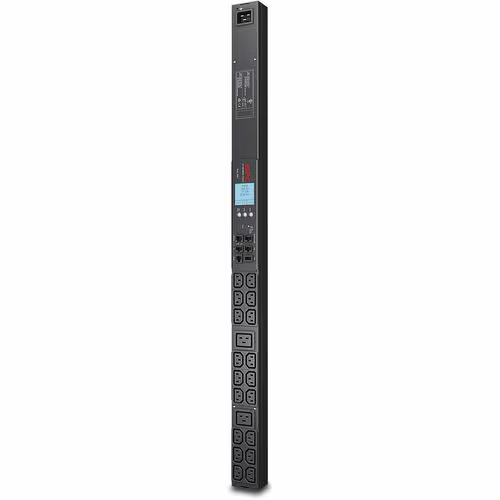

The APC AP8858NA3 is a second-generation outlet-metered switched rack PDU designed to be installed on IT racks with high density in 208 volts. Its vertical 0U format keeps all Us of servers and switches but provides an outlet metering of energy and remote switching like being able to reboot hung devices, stage power-up, and monitor usage at the outlet level to support chargeback and capacity planning.
It is designed to scale (it also has secure network management, user-defined alarms, and environmental sensors to aid in preventing overloads before a breaker is tripped). Installation is clean and consistent with a locking 30 amp input, strong cord-retention and easily identified outlets that are useful in data centers, laboratories and the edge rooms.
Key features
-
Remote rebooting, outlet-switched metering and fine-granular energy visibility.
-
0U vertical design with button attachments that are tool-less to conserve rack space.
-
Per-outlet scheduling and sequencing of orderly starts and stops.
-
Adjustable user thresholds and notifications to detect problems prior to the breaking of breakers.
-
Monitoring of the environment through temperature/humidity sensor port.
-
Secure management: web, SNMP, and CLI, logging and firmware upgradability.
-
Distribution High-density 208 V with C13/C19 outlets mixed and locking input.
Technical specifications
|
Category |
Details |
|
Model |
AP8858NA3 |
|
Type |
Switched, metered-by-outlet rack PDU (Gen 2) |
|
Orientation / size |
0U vertical (Zero-U) |
|
Input voltage |
200–208 V single-phase |
|
Maximum current |
30 A |
|
Input plug |
NEMA L6-30P (locking) |
|
Outlets |
21 × IEC C13 and 3 × IEC C19 (individually switchable) |
|
Outlet control |
Per-outlet on/off, reboot, locking, and grouping; startup sequencing |
|
Metering |
Per-outlet and aggregate (A, W, kWh) |
|
Network & management |
Ethernet management; web UI, SNMP, CLI; event logs and notifications |
|
Alarms |
User-defined thresholds with email/SNMP traps |
|
Environmental sensing |
Port for optional temperature/humidity probe |
|
Mounting |
Tool-less button mounts and brackets for standard 19″ cabinets |
|
Dimensions (H × W × D) |
~70 in × 2.2 in × 1.8 in (approx.) |
|
Weight |
Rack-grade, lightweight aluminum/steel chassis (approx.) |
|
Operating environment |
Indoor IT racks; standard data-center temperature/humidity ranges |
|
Typical use cases |
Remote reboot, chargeback metering, capacity planning in high-density 208 V racks |
