Product overview

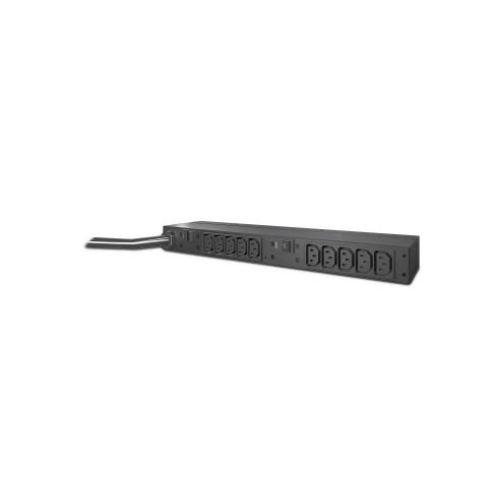

The APC AP9571A is a reliable, no-frills 1U rack power strip with network closets, laboratories, and server racks that do not need an outlet switch or remote management. It provides clean distributed 120 volt power to several devices using the same 15 amp circuit, which makes cabling easy and eliminates the daisy-chain mess of wall warts and power strips.
It has a low-profile metal chassis, labeled outlets and strong mounting hardware designed to install quickly and have a long service life. Capacity and recovery is easy with front-facing indicators and a resettable circuit breaker, and to ensure critical plugs are kept in busy racks, there are cord-retention clips.
Key features
-
Horizontal design of 1U to retain vertical U-space.
-
Simple, no-off-load distribution containing an in-built circuit breaker.
-
Several IEC/NEMA server, switch and appliance sockets.
-
Quick installation using tools-less or bracket mounts.
-
Durable metal frame and cord retention and labeling.
-
Status front indicator when making at-a-glance checks.
Technical specifications
|
Category |
Details |
|
Model |
AP9571A |
|
Type |
Basic rack PDU (always on; non-switched, non-metered) |
|
Form factor |
1U horizontal, 19″ rack-mount |
|
Input voltage |
120 V, single-phase |
|
Maximum current |
15 A |
|
Input plug |
NEMA 5-15P |
|
Outlets |
10 × NEMA 5-15R |
|
Protection |
Resettable circuit breaker; surge resistance typical of basic PDUs |
|
Indicators |
Power status LED |
|
Chassis |
Heavy-duty metal housing |
|
Mounting |
Rack ears and hardware included; reversible as needed |
|
Dimensions |
1U height; standard 19″ width; shallow depth for network cabinets |
|
Typical use cases |
Network/edge racks, labs, test benches, small server stacks |
