Product Overview

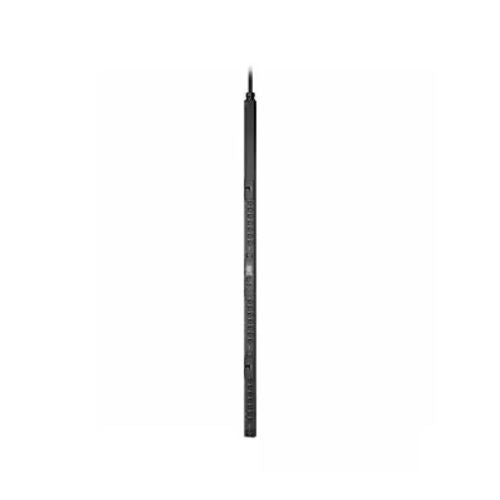

APC APDU9941 NetShelter 9000 Switched Metered Rack PDU is one of the high-efficiency and high-tech power delivery units designed to meet the requirements of the current data centres and data facilities of the enterprise. The present PDU is aimed at offering intelligent power management, outlet control over distance, and remote monitoring in order to ensure the maximum operational efficiency and availability of data.
APDU9941 can provide the network with a reliable power supply to devices, servers, and storage systems at an input of 30A and an output of 200/208 V. It has 21 C13/C15 outlets and 3 C19/C21 outlets, and this allows considerable flexibility to an extensive range of power configurations. It has the least rack space requirements, the 0U rack-mount, vertical platform, which provides cable management in an efficient way, and accessibility of all outlets easily.
The switched and metered feature can be used by administrators to track the amount of load per outlet and remotely switch power to individual devices - perfect when rebooting a malfunctioning device or in real-time energy management. Standard network accessibility also allows remote access through web, SNMP, or EcoStruxure IT software to enable proactive management and energy optimisation.
The APDU9941 is designed to provide a high level of power protection, scalable power, and controlled safety to mission-critical IT infrastructures using the APC reliability that is recognised.
Key Features
-
Switched and Metered Control: This allows outlet-level monitoring and switching power on and off, as well as rebooting the system.
-
High Power Capacity: 30A, 200/ 208 V input can handle the demanding loads in enterprises and data centres.
-
Flexible Outlet Design: 21 C13/C15 and 3 C19/C21 outlets can be used to install diverse equipment.
-
0U Vertical Design: Conserves precious rack space and reduces installation.
-
Remote Management: Access and control remotely via network interfaces using SNMP, HTTPS or APC EcoStruxure.
-
Advanced Load Monitoring: Real-time load metering ensures that overloading of circuits is prevented and that power is distributed evenly.
-
Improved Security: Role-based access and Secure device management with the help of SSL encryption.
-
Flexible Deployment: Built to support ongoing use in data centre high-density settings.
-
Ready to monitor the environment: Also accommodates optional temperature and humidity sensors.
-
Full Compatibility: APC UPS systems, NetShelter enclosures, and others are all compatible.
Technical Specifications
|
Feature |
Specification |
|
Brand |
APC |
|
Model |
APDU9941 |
|
Product Type |
Switched Metered Rack PDU |
|
Series |
NetShelter 9000 |
|
Form Factor |
0U Vertical Rack-Mountable |
|
Input Voltage |
200V / 208V |
|
Input Current |
30A |
|
Input Plug Type |
NEMA L6-30P |
|
Output Connections |
21 × C13/C15, 3 × C19/C21 |
|
Output Power Capacity |
5.0 kVA (208V, 30A) |
|
Power Monitoring |
Metered at outlet level |
|
Switching Capability |
Individual outlet on/off control |
|
Network Management |
SNMP, Web, and EcoStruxure IT compatible |
|
Mounting Orientation |
Vertical (0U) |
|
Cord Length |
10 ft (3.05 m) |
|
Rack Compatibility |
APC NetShelter SX and similar enclosures |
|
Material |
Steel |
|
Color |
Black |
|
Operating Temperature |
0°C to 45°C |
|
Humidity Range |
5% to 95% non-condensing |
|
Compliance |
UL Listed, CE, RoHS |
|
Warranty |
2-Year Manufacturer Warranty |
