Product Overview

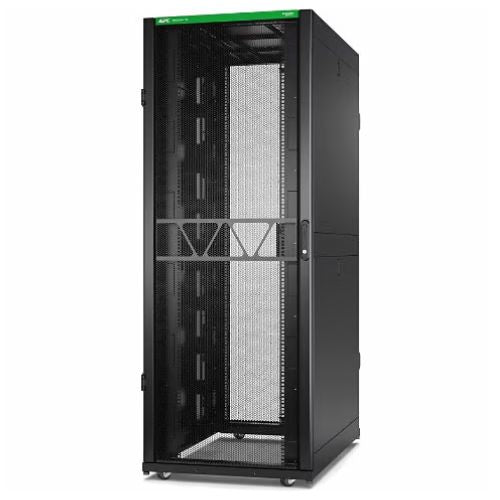

APC AR3350B2 NetShelter SX Gen 2 42U Enclosure is a high-quality server rack that is designed to operate in an enterprise and data center setting where better airflow, security, and access are needed. This Gen 2 model is designed to support the modern high-density IT deployments with better cable management capabilities, enhanced capacity to handle loads, and better thermal performance to the already known NetShelter SX line.
The AR3350B2 is 1991H x 750W x 1200D mm, which provides sufficient internal space to fit all kinds of IT equipment, such as servers, networking switches, and power distribution equipment. The 750 mm width offers extra space on which the structured cabling and airflow channels can be built, and the 1200 mm depth allows it to accommodate deeper server installations.
This rack was made out of durable steel with a black powder-coated finish, which provides strength and style to professional data centers. Removable side panels, adjustable mounting rails, and lockable doors enable safe but convenient access to the critical equipment. The AR3350B2 is also TAA compliant and, as such, it is suitable in the public sector and federal projects as it meets the stringent government and regulatory provisions.
Key Features
-
42U High-Density Capacity: Enables massive applications of rack-mount IT and networking devices.
-
Maximized Airflow Design: Perforated front and rear doors maximize the cooling efficiency and ventilation.
-
Wide Frame 750 mm: This offers improved cable management space and level of airflow.
-
1200 mm Depth: Deep rack-mounted servers, power equipment, fit.
-
TAA Compliant: Government and institutional use.
-
Strong Construction: The Steel frame is of high strength and stable in the long run.
-
Modular Mounting Rails: Provide elastic mounting of IT equipment and accessories.
-
Improved Cable Management: Provides vertical and horizontal cable paths to support the orderly routing.
-
Tool-less Side Panels: Have the ability to be removed quickly to allow maintenance or reconfiguration.
-
Secure Access: Front and rear doors are lockable, making the equipment resistant to unauthorized access.
-
Simple to Deploy: Ships are fully configured to be installed and integrated instantly.
-
Future-Ready Design: APC rack accessories, PDUs, and cooling systems are compatible.
Technical Specifications
|
Feature |
Specification |
|
Brand |
APC |
|
Model |
AR3350B2 |
|
Series |
NetShelter SX Gen 2 |
|
Rack Units |
42U |
|
Product Type |
Server Rack Enclosure |
|
Height |
1991 mm (78.4 in) |
|
Width |
750 mm (29.5 in) |
|
Depth |
1200 mm (47.2 in) |
|
Material |
Steel |
|
Color |
Black |
|
Door Type |
Perforated front and rear doors |
|
Side Panels |
Removable, lockable |
|
Mounting Rail Depth |
Adjustable |
|
Cable Management |
Vertical & horizontal channels |
|
Maximum Load Capacity |
Up to 1363 kg (3000 lbs) |
|
Cooling Compatibility |
Supports passive and active cooling systems |
|
TAA Compliance |
Yes |
|
Weight (Approx.) |
147 kg (324 lbs) |
|
Warranty |
5-Year Repair or Replace Warranty |
