Product overview

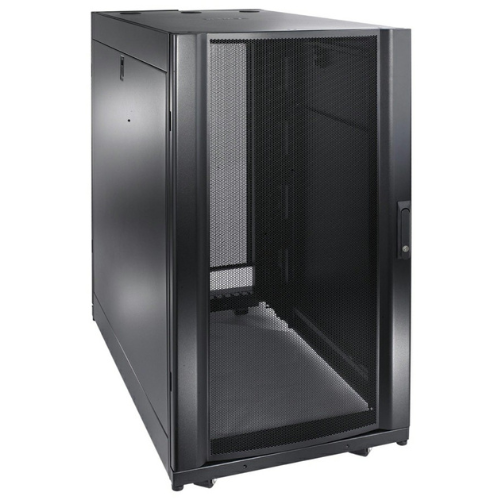

The APC NetShelter SX AR3104 is a 24U networking/server enclosure that is designed in tight spaces yet requires full-depth equipment and neat cable management. It is 600 mm wide and 1070 mm deep, accommodates standard 19″ gear, and has an additional deep to bend cables, PDUs and airflow accessories- ideal in IDF/MDF rooms, edge closets, branch sites, and bench top of the lab.
A welded steel frame, perforated doors, and brush-sealed roof openings are used to maintain front-rear cooling efficiency and numbered, depth-adjustable square-hole rails ensure that installs are quick and repeatable. It is shipped ready to move with casters, levelening feet, side panels and baying hardware, making it possible to roll it to place then level it and proceed with mounting equipment immediately.
Key features
-
Compact form factor of 24U and full depth of servers, switches and cable radius (1070 mm).
-
Perforated front door and divided rear door to allow good front to rear airflow.
-
Depth adjustable square-hole rails with numbers to accelerate the installation and maintenance.
-
Vertical cable channel and roof brush strip with onboard vertical cable channels and roof brush strips to provide tidy and high-density patching.
-
Casters and leveling feet provided to avoid difficult positioning and final anchoring.
-
Baying ability to generate clean multi- cabinet lines.
-
The high load rating that will support full rack populating.
-
Fully grounded points and general accessory eco-system (PDUs, shelves, airflow kits)
Technical specifications
|
Category |
Details |
|
Model |
AR3104 |
|
Series |
NetShelter SX |
|
Rack units |
24U |
|
External dimensions (H × W × D) |
≈ 1242 × 600 × 1070 mm (≈ 48.9 × 23.6 × 42.1 in) |
|
Rail type |
19″ EIA-310 compliant, square-hole, numbered, depth-adjustable |
|
Doors & panels |
Perforated front door, split perforated rear doors, removable lockable side panels |
|
Airflow |
Front-to-rear optimized; high-open-area perforation; brush-sealed roof pass-throughs |
|
Cable management |
Integrated vertical cable managers; large top/bottom cable access openings |
|
Load capacity |
Static ~3000 lb (≈1360 kg); rolling ~2250 lb (≈1020 kg) |
|
Included hardware |
Casters, leveling feet, baying hardware, mounting hardware, grounding/bonding points |
|
Construction |
Welded steel frame; removable roof panel with tool-less access |
|
Color |
Black |
|
Security |
Keyed locks for doors and side panels |
|
Compliance |
EIA-310 equipment mounting; RoHS/REACH materials (series standard) |
|
Compatibility |
Supports common 0U PDUs, cable ladders, airflow and containment accessories |
|
Typical use cases |
IDF/MDF closets, branch/edge racks, lab and test environments, small server stacks |
