Product Overview

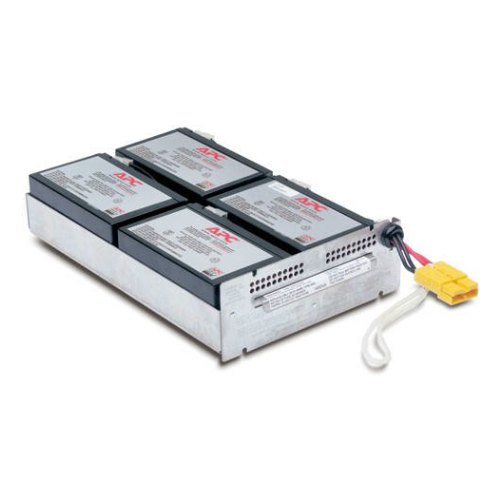

The APC RBC24 Replacement Battery Cartridge is a high-quality, maintenance-free sealed lead-acid (SLA) battery that is intended to refresh the performance of APC Smart-UPS and Back-UPS models that are compatible with this battery. The package contains four 12V 9Ah batteries that are already wired and ready to connect, and which can be easily replaced without any complications. The RBC24 also has a life of 3-5 years; thus, it is a good backup power source to keep the essential equipment safe and intact in case of power failure.
Key Features and Benefits
-
Fully Assembled Unit: includes 4 12V 9Ah batteries, connectors, and a metal tray, which are already assembled and are ready to install.
-
Maintenance Free: It uses sealed lead-acid batteries that do not need any maintenance, and so does not need frequent repairs.
-
Hot-Swappable Design: It can be easily replaced without disconnecting any connected equipment, which reduces downtime.
-
Environmental Compliance: Built to comply with or surpass the international safety and environmental regulations, safe transportation, and disposal.
-
Long Battery Life: The typical 3-5-year battery life is engineered based on the usage and environmental factors.
-
2-Year Warranty: The warranty of 2 years guarantees comfort and quality assurance.
Technical Specifications
|
Feature |
Specification |
|
Battery Type |
Sealed Lead-Acid (SLA) |
|
Voltage |
12V per battery (4 batteries total) |
|
Capacity |
9Ah per battery |
|
Configuration |
4 x 12V 9Ah batteries in series |
|
Dimensions (L x W x H) |
13.5" x 8.5" x 3.26" (342.9 mm x 215.9 mm x 82.8 mm) |
|
Weight |
Approximately 28 lbs (12.7 kg) |
|
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
|
Storage Temperature |
-15°F to 45°F (-26°C to 7°C) |
|
Warranty |
2 years |
Compatibility
APC RBC24 will work with several APC UPS models, such as:
-
Smart-UPS Models: SU1400RM2U, SU1400RMJ2U, SUA1500RM2U, SUA1500RMI2U, SUA1500RMUS, etc.
-
Back-UPS Models SU1400R2BX120, SU1400R2X122, and more.
Check the compatibility of your UPS model with the RBC24 by checking the specifications of your model.
Product Information
The APC RBC24 Replacement Battery Cartridge is meant to revive the functionality of the compatible APC UPS systems to have reliable backup power in the event of an outage. Its closed lead-acid battery design ensures that it does not require any maintenance, and the hot-swappable nature allows the battery to be easily replaced without breaking equipment connected to it. The RBC24 has a high longevity of 3-5 years, giving it long-term reliability and peace of mind.
