Product Overview

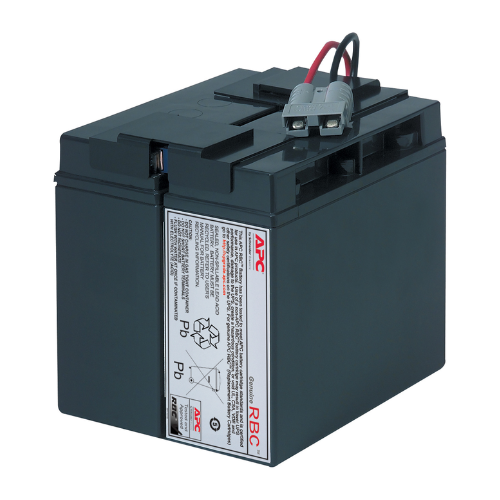

APC RBC7 (Replacement Battery Cartridge Number 7) is a sealed lead-acid battery pack compatible with APC Back-UPS and Smart-UPS. It is sold to supply reliable backup power, and its provision of it returns the compatible UPS systems to manufacturer standards in terms of runtime. The RBC7 can be used in small servers, networking equipment, home laboratory systems, and office installations where the stability of power is essential and has a decent lifespan.
Key Features and Benefits
-
Replaceable battery plug-and-play- Meaning- It is fully assembled, and it is hot-swappable, meaning a user can change it without causing much downtime or technical effort.
-
Leak-free, maintenance-free lead-acid chemistry. Sealed, safe, no water topping or special treatment needed, can be used indoors.
-
Replicates original OEM performance -Sold to match or sometimes exceed the specifications of the original battery fitted on compatible APC UPS models.
-
Stable life span: The normal working conditions have a service life of 3 to 5 years, which makes it an inexpensive element in servicing UPS.
-
backed warranty Warranty extended Warranty is normally 2 years under a limited warranty.
Technical Specifications
Product Information
Some APC UPS models have RBC7 cartridges that fit into two sealed lead-acid (SLA) batteries that are mounted in a single replacement. It allows a quick replacement of batteries that are being degraded, as it is already assembled, with the cabling, connectors, and fuses attached.
Batteries are 12 V each inside; two can be put in series to provide a nominal voltage of 24 V. When loaded to a capacity of about 18 Ah, the RBC7 will provide ample runtime to support moderate loads such as servers, network switches, or edge equipment, and wait until power is restored or backup generators are positively triggered.
Since it is floating, maintenance-free and sealed, the RBC7 lowers the user overhead: there is no need to check fluid levels or fear of acid leaks. The build is also strong with the materials and connectors being able to suit the safety and performance standards of APC.
Estimated working life (in favorable conditions of use, ambient temperatures, frequent recharge cycles) is approximately 3-5 years. Real battery life will be influenced by the environmental conditions, in particular, temperature, depth of discharge, and frequency of use.
Warranty is typically 2 years (refer to regional conditions), and APC / approved resellers will normally assist with replacement under warranty in the event battery capacity is heavily depleted before the warranty expires.
