Product overview

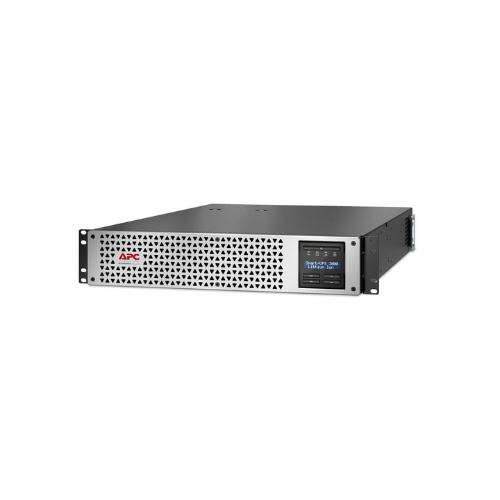

The APC Smart-UPS Lithium-ion SMTL3000RM2UCNC is a high-density power protection solution in a small 2U rack package, which is useful in network closets and server racks, as well as edge environments that cannot afford downtime. Pure sine-wave output Line-interactive topology cleans and stabilizes power during sags and surges, and Automatic Voltage Regulation (AVR) corrects variation in the input without using up the battery, allowing time to remain on-line during genuine outages.
It features a long-life lithium-ion battery pack, allowing much longer service life, while charging faster and with a lower overall cost of ownership than other similar VRLA models. The CNC package consists of an enclosed network administration card and SmartConnect, thus you obtain cloud notifications, distant tracking, and elegant shutdown workflows out of the box. Outlet groups facilitate the gradual startup and remote reboots of racks with minimum hand-on time.
Key features
-
Longer life lithium-ion battery technology, higher recharge rate, and reduced TCO.
-
3000 VA / 2700 W pure sine-wave server, storage and network equipment output.
-
AVR-based (boost/trim) line-interactive- no battery voltage stabilization is done.
-
2U rack/tower convertible racks and closets Space-constrained rack and closet.
-
Network Management Card (CNC) preinstalled and SmartConnect cloud visibility.
-
Outlet group control of sequenced startup/shutdown and remote reboot.
-
Local status, configuration and diagnostics LCD in the front.
-
USB/Serial connectivity; event log and user defined alarms.
Technical specifications
|
Category |
Details |
|
Model |
SMTL3000RM2UCNC |
|
Series |
Smart-UPS Lithium-ion |
|
Topology |
Line-interactive with AVR (boost and trim) |
|
Output waveform |
Pure sine wave |
|
Capacity |
3000 VA / 2700 W |
|
Nominal voltage |
120 V single-phase |
|
Input connector |
NEMA L5-30P (30 A) |
|
Output receptacles |
NEMA 5-20R outlet groups for switched control (exact mix may vary by sub-model) |
|
Transfer time |
~4–8 ms (typical for line-interactive) |
|
Battery |
Lithium-ion pack; user-replaceable module |
|
External battery |
Not designed for external packs (lithium-ion integrated) |
|
Communications |
USB, Serial (RS-232), embedded Network Management Card, SmartConnect |
|
Display & alerts |
Front LCD, LEDs, audible alarms, event logging |
|
Protection |
Surge suppression; overload/short-circuit protection |
|
Form factor |
2U rack/tower convertible; rail kit availability model-dependent |
|
Typical applications |
Server/network racks, edge compute, storage arrays, VoIP, retail/branch IT |
