Product overview

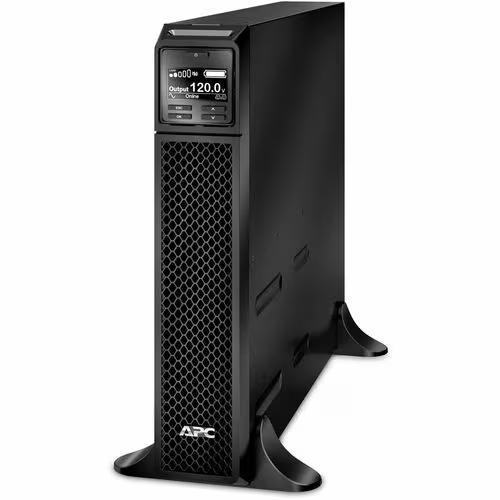

APC Smart-UPS SRT1000XLA is a true double-conversion (on-line) UPS which provides clean and steady power to the network equipment, storage and important servers. It provides protection against sags, surges and line noise on sensitive loads by constantly conditioning the input power and transfers with zero interruption to ensure that systems continue running during outages.
This 1000 VA / 900 W tower model designed with small racks and edge closets has hot-swappable batteries, optional external battery packs to extend the operation time, and it is flexible to manage using USB/Serial with an optional network card. A user-friendly front LCD simplifies installation and day-2 troubleshooting and enables you to guarantee uptime with the least amount of hands on.
Key features
-
Authentic on-line protection: Double conversion, transfer time = 0 ms.
-
Small racks, servers and network equipment capacity 1000 VA / 900 W.
-
Swappable batteries and long-run time with external batteries.
-
AVR Automatic bypass and AVR in case of faults and voltage anomalies to allow safe continuity.
-
Sequenced remote reboot/startup group control.
-
Status, configuration and event diagnostic front LCD.
-
USB management and Serial management and SmartSlot by optional network management card.
-
Tower shape and low noise/office acoustics.
Technical specifications
|
Category |
Details |
|
Model |
SRT1000XLA |
|
Topology |
Double-conversion (on-line) |
|
Capacity |
1000 VA / 900 W |
|
Output waveform |
Pure sine wave |
|
Nominal voltage |
120 V single-phase |
|
Input connector |
NEMA 5-15P |
|
Output receptacles |
6 × NEMA 5-15R (grouped for switched control) |
|
Transfer time |
0 ms (continuous on-line) |
|
Voltage regulation |
AVR with boost/trim |
|
Efficiency |
High-efficiency mode options (load/mode dependent) |
|
Battery |
Sealed lead-acid (VRLA), hot-swappable |
|
External battery |
Supported (optional external battery packs for longer runtime) |
|
Communications |
USB, Serial (RS-232); SmartSlot for optional network/SNMP card |
|
Controls & display |
Front LCD, LEDs, audible alarms |
|
Protection |
Surge suppression, overload/short-circuit protection, EPO input |
|
Form factor |
Tower |
|
Typical applications |
Small server racks, network closets, storage/NAS, POS/retail, edge compute |
