Product overview

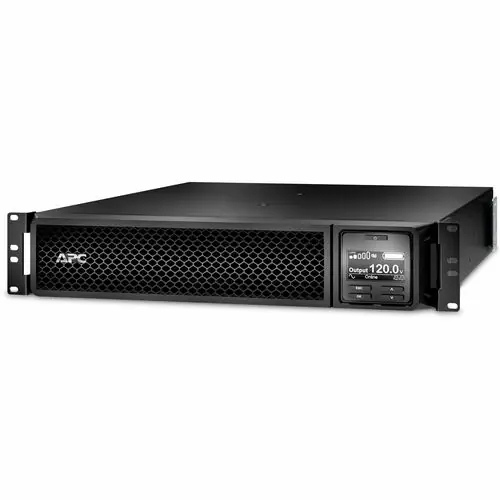

The APC Smart-UPS SRT1500RMXLA is a real, in a literal sense, two-conversion (on-line) UPS designed to provide clean and repeatable power to priceless servers, storage and network apparatus. As the AC gets repeatedly recovered, and loads connected to it are separated by sags, surges, and line noise, it offers zero-transfer protection to place sensitive equipment on unstable mains and even temporary shutdowns.
Designed with extremely high-density rack and edge sites, it is a 2U rack/tower-convertible model with a 1500 VA / 1350 W power envelope with hot-swappable batteries, front LCD to fully display power and loads, and external battery pack support as needed. Scalable operation through USB/Serial and SmartSlot, as well as control over outlets in groups to allow a staged startup and remote reboot, assist in making day-2 operations simpler.
Key features
-
On-line security as true: Double-conversion architecture transfer time 0 ms.
-
1500 VA / 1350 W: Scale small racks and core network equipment protection Right.
-
Long run ready: Battery packs of long duration can be used to extend the runtime.
-
Hot-swap batteries: Service without shutting off the equipment possible to do.
-
Automatic bypass & AVR: Holds loads online when overloading or it is on the fault; corrects incoming voltage.
-
Outlet group control: Remote reboot/sequenced boot/shutdown.
-
Clearness status/control Front LCD Diagnostics, alarms, and configuration.
-
Flexible management USB, Serial, and SmartSlot optional network management card.
-
Rack/tower convertible 2U: Fits standard racks model dependent rail kit available.
Technical specifications
|
Category |
Details |
|
Model |
SRT1500RMXLA |
|
Topology |
Double-conversion (on-line) |
|
Capacity |
1500 VA / 1350 W |
|
Input |
120 V, 50/60 Hz auto-sensing |
|
Input connector |
NEMA 5-15P |
|
Output voltage |
120 V (configurable) |
|
Output receptacles |
6 × NEMA 5-15R (grouped for switched control) |
|
Transfer time |
0 ms (continuous on-line) |
|
Voltage regulation |
AVR with boost/trim |
|
Efficiency |
Up to high-efficiency modes (load and mode dependent) |
|
Battery |
Hot-swappable VRLA; external battery pack support for extended runtime |
|
Communications |
USB, Serial (RS-232), SmartSlot for optional network card |
|
Controls & indicators |
Front LCD panel, LEDs, audible alarms |
|
Protection |
Surge suppression, overload/short-circuit protection, EPO input |
|
Form factor |
2U rack/tower convertible |
|
Typical applications |
Server/network racks, storage arrays, VoIP, edge/branch IT, lab/industrial PCs |
