Product overview

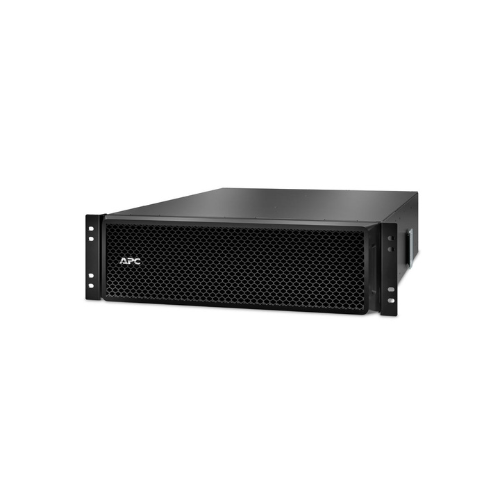

APC SRT192RMBP This is a 192 volt rackmount battery pack, which increases the life span of a compatible Smart-UPS SRT on-line UPS system. It supports hot-swappable VRLA battery modules in a small 3U enclosure, allowing you to keep important servers, storage, network equipment running during longer outages without including additional UPS footprint or electrical architecture.
Designed specifically to be used in data centers and edge closets, the pack can connect fast with a high-current DC cable and also has an internal breaker so it can be safely serviced. The packs may be chained (depending on the model) to be able to scale the runtime with the increase in the requirements, whereas the status indicators on the front panel and the batteries that can be changed by the user make day-2 maintenance easier.
Key features
-
Smart-UPS SRT on-line UPS models with a battery bus that is 192 VDC in run time.
-
Serviceable hot-swappable VRLA batteries.
-
3U rackmount chassis so that U-space is saved and that 4-post racks can fit.
-
Daisy-chain has the ability to add new packs to increase its running time (UPS/model dependent)
-
Interchangeable DC breaker and heavy duty battery connector to fit safe installation.
-
In front status LEDs and replace-in-place battery poisons to facilitate rapid maintenance.
-
Field ready design, heavy metal enclosure and cable management hardware.
Technical specifications
|
Category |
Details |
|
Model |
SRT192RMBP |
|
Type |
External battery pack for Smart-UPS SRT |
|
Nominal DC bus |
192 VDC |
|
Battery chemistry |
Sealed lead-acid (VRLA), hot-swappable modules |
|
Form factor |
3U rackmount (4-post compatible) |
|
Compatibility |
Smart-UPS SRT rack/tower models that support 192 V external battery packs (e.g., select 5–10 kVA class; check UPS datasheet) |
|
Runtime scaling |
Supports multiple external packs in a chain (limit depends on UPS model) |
|
Protection |
Integrated DC breaker; locking high-current connector |
|
Monitoring |
Pack presence and status via the connected UPS; front status LEDs |
|
Included accessories |
DC battery cable, mounting rails/brackets, hardware (contents may vary by region) |
|
Dimensions (H × W × D) |
Approx. 3U × 17 in × 28–30 in class chassis |
|
Weight |
Heavy, rack-grade (approx. tens of kg; use two-person lift) |
|
Operating temperature |
0–40 °C (UPS-room conditions) |
|
Humidity |
5–95% non-condensing |
|
Typical use cases |
Extending UPS runtime for servers, storage, network/telecom, edge compute, and industrial IT |
