Product Overview

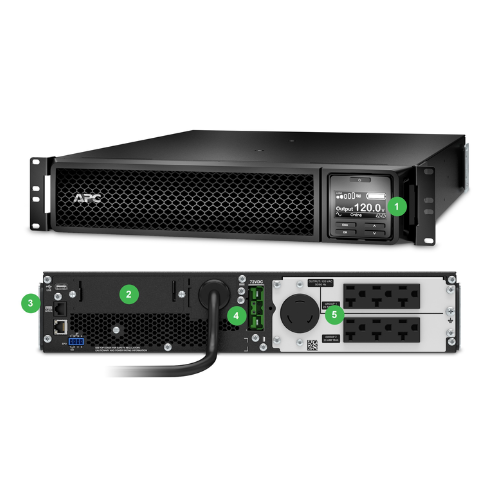

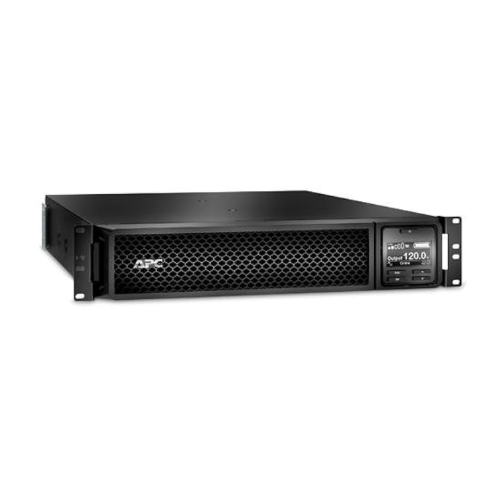

APC Smart-UPS SRT2200RMXLA is an online uninterruptible power supply (UPS) of high performance that has been engineered to offer reliable power protection to critical IT equipment. This 2200 VA / 1800W rackmount UPS has the capacity to provide pure and clean sine wave output, disrupting the use of sensitive equipment during an outage of power in the circuit. Its flexible structure enables rackmounting as well as tower format, which enables it to be applicable under a wide range of deployment conditions.
Key Features and Benefits
-
High Power Capacity: The unit provides 2200VA / 1800 W to serve a wide variety of devices.
-
Pure Sine Wave Output: An important factor in providing clean and stable power, the equipment of sensitive devices does not experience any variation of voltage.
-
Double-Conversion On-Line Topology: Supplies an uninterrupted supply of power by converting incoming AC power to DC Power, and then back to AC.
-
Short Depth Design: Designed to fit in spaces that are not very spacious and developed to provide additional areas where cables can be managed.
-
Adjustable Voltage Settings: It supports different power environments as the input voltage range can be set to 100V-127V by the user.
-
Long Run time: long run time with States up to 10 battery packs (SRT72RMBP) to provide extended backup periods during times of long outages.
-
SmartSlot Network Management Card: enables it to monitor and administer the UPS remotely.
-
ENERGY STAR(r) Certified: EPA-approved label of the cost-saving energy efficiency solutions.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
2200VA / 1800W |
|
Topology |
Double-Conversion On-Line |
|
Waveform Type |
Pure Sine Wave |
|
Input Voltage Range |
100V-127V (user-selectable) |
|
Output Voltage |
120V AC ±5% |
|
Transfer Time |
0 ms (zero transfer time) |
|
Output Connections |
6x NEMA 5-20R, 1x NEMA L5-20R |
|
Network Management Card |
SmartSlot (optional) |
|
Form Factor |
Rack/Tower Convertible, 2U |
|
Dimensions (H x W x D) |
3.5" x 17.0" x 22.0" (89 x 432 x 559 mm) |
|
Weight |
50.7 lbs (23.0 kg) |
|
Battery Type |
Lead-Acid, Maintenance-Free |
|
Battery Voltage |
96V |
|
Typical Recharge Time |
3 hours |
|
Battery Life Expectancy |
3–5 years |
|
Warranty |
2-year limited warranty |
Product Information
The APC Smart-UPS SRT2200RMXLA has been designed to offer a high level of power safety to critical equipment. Its online topology works using the double-conversion concept, which provides a constant and uninterrupted supply of power by only transforming connecting AC power into DC and reallocating the energy back into AC. This guarantees the devices that are sensitive to power are lean and stable, hence the devices are safeguarded against voltage and power disturbances.
This UPS was designed with a short depth and can be used in situations where there is limited available space, leaving more room to handle the cables. Its input voltage range is user-selectable to enable flexibility in numerous power settings, novel to diverse power requirements.
The smartSlot has a built-in slot to place a Network Management Card and monitor and manage the UPS remotely. Proactive maintenance and reduced downtimes are achievable through this capability that enables instantaneous status updating and diagnostics.
The SRT2200RMXLA performs well in either a rackmount or tower installation, providing all the reliability and security that you need in order to prevent issues with power regulation.
