Product Overview

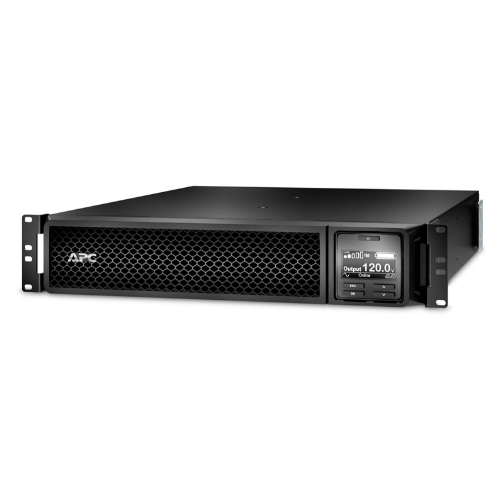

APC smart-UPS-SRT3000RMXLA is a high-performance, double conversion, online uninterruptible power supply (UPS) device that is designed to provide power protection in a reliable manner to the critical IT equipment. Having a capacity of 3000 VA / 2700 W, this 2U rackmount UPS has a clean pure sine output, and, therefore, in case of a power disturbance, this device will not make the sensitive equipment leave without. Its modular layout can be used both as a rackmount and tower, which makes it an applicable device to numerous deployment situations.
Key Features and Benefits
-
Large Power Capacity: The large power capacity of 3000VA / 2700W allows the use of diverse devices.
-
Clean Sine Wave-B: Provides good dependability from stunted voltage flows to sensitive machines.
-
Double-Conversion On-Line Topology: This topology offers continuously flowing power, a nonstop supply of power conversion between AC power and DC power, and vice versa.
-
Short Depth Design: The design is perfect in areas where space is minimal, thus providing the added room to manage the cables.
-
Variable Voltage Settings: The input voltage range of 100 V to 127 V is variable and gives the user a chance to ensure customizable input volts, which helps determine suitable settings in varying power settings.
-
Long Run Time: Both battery packs: Battery pack can charge and discharge up to 10 external battery packs (SRT96RMBP) to provide a long backup in a long downtime.
-
SmartSlot Network Management Card: The UPS can be remotely monitored and managed.
-
ENERGY STAR(r) Certified: EPA label of energy efficiency solutions that are cost-saving.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
3000VA / 2700W |
|
Topology |
Double-Conversion On-Line |
|
Waveform Type |
Pure Sine Wave |
|
Input Voltage Range |
100V-127V (user-selectable) |
|
Output Voltage |
120V AC ±5% |
|
Transfer Time |
0 ms (zero transfer time) |
|

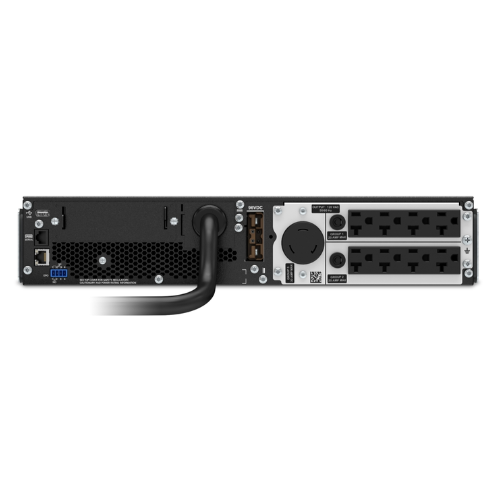

Output Connections |
8x NEMA 5-20R, 1x NEMA L5-30R |
|
Network Management Card |
SmartSlot (optional) |
|
Form Factor |
Rack/Tower Convertible, 2U |
|
Dimensions (H x W x D) |
3.5" x 17.0" x 22.0" (89 x 432 x 559 mm) |
|
Weight |
50.7 lbs (23.0 kg) |
|
Battery Type |
Lead-Acid, Maintenance-Free |
|
Battery Voltage |
96V |
|
Typical Recharge Time |
3 hours |
|
Battery Life Expectancy |
3–5 years |
|
Warranty |
2-year limited warranty |
Product Information
The APC Smart-UPS SRT3000RMXLA has been designed to offer a high-power scheme of critical equipment. Its two-way conversion topology provides multiple power supplies, giving a continuous supply of power, unlike in a single conversion, which enables constant power on AC to DC and again to AC. This gives the sensitive devices power that is clean and stable, which will do away with the lagging and surging voltages and other power faults.
This UPS is designed with a short depth and thus can be used in buildings where there is a lack of space; it offers more room to maintain the cables. The flexibility in different power settings is also available in the user-selectable input voltage range, through which one can easily adjust their voltage settings in various power settings.
The SmartSlot has been integrated to support the insertion of a Network Management Card, which provides the opportunity to monitor and control the UPS remotely. This eliminates downtime and guarantees that the maintenance process is done proactively as well, since real-time updates and diagnostics indicate status.
Installation in a rackmount or tower system, the SRT3000RMXLA offers a solid performance and turbo-serenity along with insurance against the vagaries of the electric current.
