Product overview

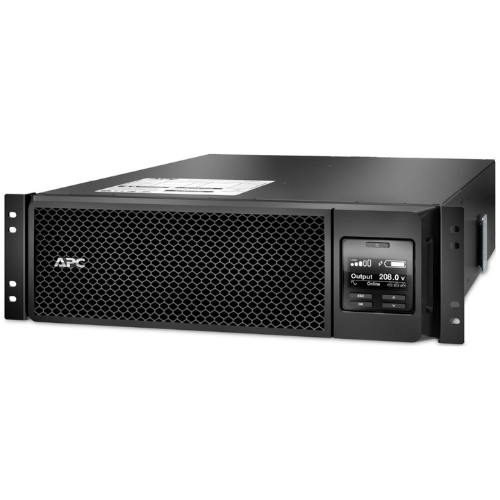

The APC Smart-UPS SRT5KRMXLT-IEC is a high-speed, on line (or dual conversion), UPS designed to ensure that mission critical IT and network equipment continues without issues during power upheaval and power outages. Under the true on-line topology, it condition and transparently transfers to battery with no zero transfer time and works with vulnerable servers, storage equipment, voice/data equipment, lab equipment, and industrial PCs.
This 3U rack/tower-convertible system features a 5kVA/4.8kW power envelope paired with hot-swappable batteries, embedded network management card, and compatibility with extended run time with optional battery packs because it has been designed to be used in dense racks, and remote sites. Installation and Day-2 operations Tooleless rails and a sizable front LCD make installation and day-2 operations trivial in data centers, IDFs/MDFs, and edge environments.
Key features
-
Real-time on-line protection: Double-conversion architecture provides steady and clean power against zero transfer time.
-
5kVA/ 4.8kw capacity: Right-sizes protection of multi-server-racks, storage units, and network aggregation.
-
Rack/tower convertible 3U: Saves U-space, Caps and fits a variety of installations; rail kit supplied.
-
Long time run ready: Has several external battery packs that provide long time backup.
-
Embedded management: Network Management Card and SmartSlot: advanced monitoring and control.
-
The combination of IEC outlets: The high density type to use is to use both C13 and C19 receptacles to support mixed loads.
-
Hot-swappable battery and fans: without stopping secured equipment.
-
ECO/green modes: Excellent operating efficiency, to save on heat and energy expenses.
-
Comms & safety USB/Serial, dry-contact/EPO, audible/visual alarm, event logging.
Technical specifications
|
Category |
Details |
|
Model |
SRT5KRMXLT-IEC |
|
Topology |
Double-conversion (on-line) |
|
Capacity |
5000 VA / 4800 W |
|
Form factor |
3U rack/tower convertible (rail kit included) |
|
Input |
208/240 V, 50/60 Hz auto-sensing |
|
Input connector |
NEMA L6-30P |
|
Output voltage |
208/240 V |
|
Output receptacles |
8 × IEC (4 × C13, 4 × C19) |
|
Transfer time |
0 ms (on-line) |
|
Efficiency |
Up to ~96% (mode-dependent) |
|
Runtime expansion |
Supports external battery packs (extended-runtime capable) |
|
Battery type |
Hot-swappable, sealed lead-acid (VRLA) |
|
Communications |
Ethernet (embedded NMC), USB, Serial; SmartSlot expansion |
|
Controls & display |
Front LCD status/control panel |
|
Protection & safety |
Surge suppression, short-circuit/overload protection, EPO input, alarms |
|
Dimensions (H × W × D) |
~130 × 432 × 719 mm (3U × 17.0 in × 28.3 in) |
|
Weight |
~56 kg (123 lb) |
|
Operating temperature |
0–40 °C |
|
Compliance |
RoHS and regional safety/EMC standards (model/region dependent) |
|
Typical applications |
Server & storage racks, network closets, edge/industrial IT, labs, healthcare, education |
