Product Overview

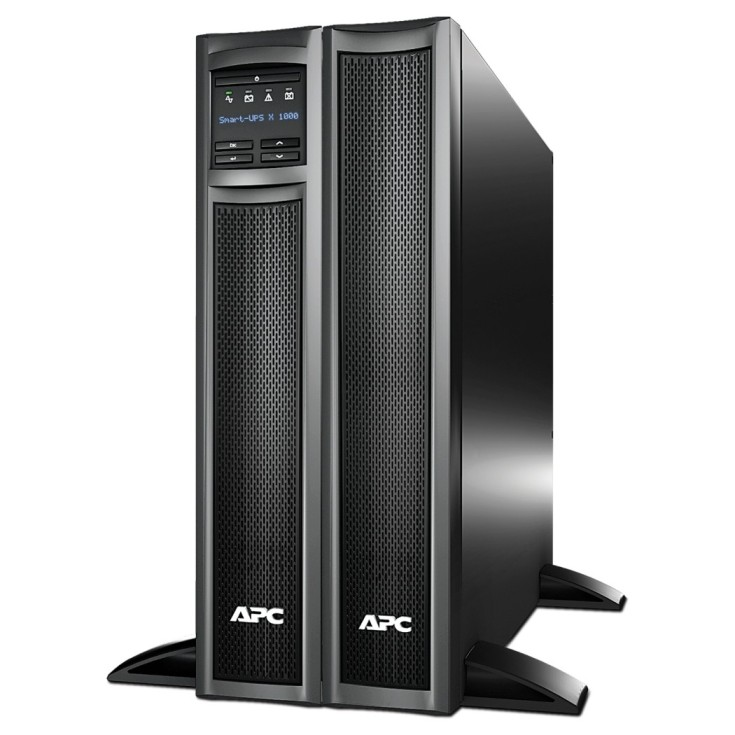

The APC Smart-UPS X 1000VA (SMX1000CUS) is a Uninterruptible Power Supply (UPS) that is high efficiency and is employed to protect mission-critical devices and business continuity in the event of a power outage. The rack/tower convertible UPS provides 1000VA/800W of reliable power, which is sufficient enough in servers, switches within the network, and business workstations.
It has a pleasant LCD and SmartConnect Port, where real-time tracking and remote control may be offered, which makes this UPS effective in the context of the product's operation and maintenance. It has been designed to meet government and enterprise applications that require secure and compliant power solutions.
Its rich sine wave current provides stable and clean power, and the automatic voltage regulation (AVR) option automatically adjusts the voltage variation without the need to change to battery mode to save power, yet provides a stable output, extending the life of the battery. The SMX1000CUS is designed to be flexible and high-performance, irrespective of whether it is mounted in a rack or tower configuration.
Key Features
-
Reliable Backup Power: 1000VA / 800W for critical IT and networking devices.
-
Flexible Design: Rack/tower convertible to allow versatile installation.
-
SmartConnect Technology: This allows monitoring and UPS control of remote devices through a secure cloud service.
-
TAA Compliant: Appropriate for government and federal usage.
-
LCD Display: Provides a real-time and status view and access to configuration.
-
Automatic Voltage Regulation (AVR): Helps stabilize the input voltage without discharging the battery.
-
High Efficiency: The energy-saving mode ensures that the operating cost is cut without compromising on performance.
-
Hot-Swappable Batteries: Ensured constant uptime in case of battery change.
Technical Specifications
|
Specification |
Detail |
|
Model |
APC Smart-UPS X 1000VA |
|
Part Number / SKU |
SMX1000CUS |
|
Power Capacity |
1000VA / 800W |
|
Topology |
Line-Interactive |
|
Form Factor |
Rack/Tower Convertible |
|
Input Voltage |
120V AC |
|
Output Voltage |
120V AC Pure Sine Wave |
|
Input Connections |
NEMA 5-15P |
|
Output Connections |
(8) NEMA 5-15R |
|
Interface Ports |
USB, Serial, SmartConnect Port |
|
Display Type |
LCD with Multicolor Backlight |
|
Battery Type |
Maintenance-Free Sealed Lead-Acid, Hot-Swappable |
|
Runtime (Typical Load) |
~6–10 minutes (Full Load), ~15–20 minutes (Half Load) |
|
Network Management |
SmartConnect Cloud Monitoring, Optional Network Card |
|
Compliance |
TAA Compliant |
|
Dimensions (Approx.) |
3.9 x 17.0 x 19.2 inches (H x W x D) |
|
Weight (Approx.) |
45 lbs (20.4 kg) |
|
Color |
Black |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Warranty |
3-Year Repair or Replace Warranty |
|
Manufacturer |
APC by Schneider Electric |
