Product Overview

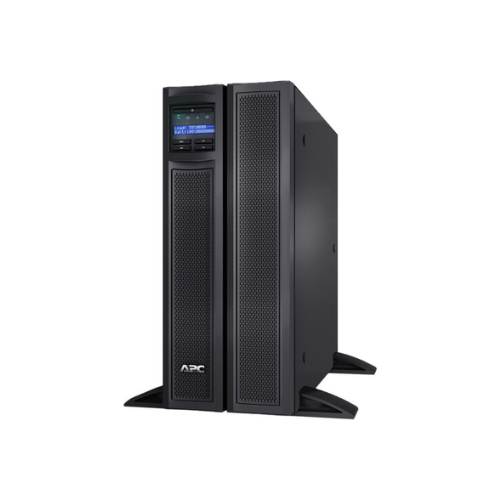

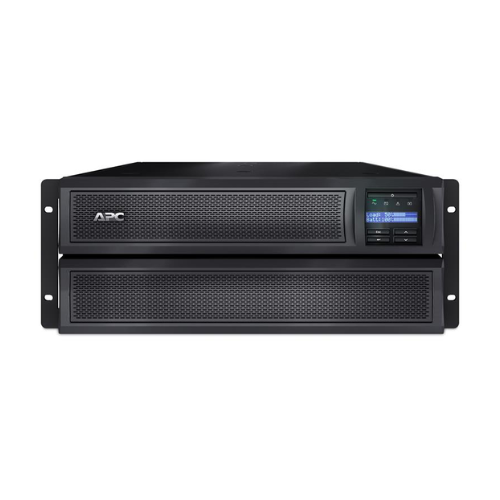

APC Smart-UPS X SMX2000LVNC is a high-performance, line-interactive uninterruptible power supply, which is needed to confer reliable power protection to critical IT equipment. Having the capacity of 1920VA /1800W, this UPS offers the capability to maintain the operational state of computers, networking systems, and other delicate electronics in the event of a power outage. Its multi-configurable design can be used in either rackmount or tower applications and can be deployed in a range of applications in any deployment environment.
Key Features and Benefits
-
Large Power Capacity: 1920VA /1800W to power a wide variety of options.
-
Pure Sine Wave Output: There is a clean and stable output of power, which does not harm the highly sensitive equipment.
-
Line interactive Topology: A more efficient battery charging and power conditioning.
-
Short Depth Design: This design suits well in spaces that have limited areas, where more space is added to allow more cable management.
-
Adjustable Voltage Margins: For ease of adapting to various power settings, the input voltage can be adjusted to 100V-127V.
-
Long Run Time: Two 10-hour battery packs (SMX120BP) may be used as auxiliary backups in case of a long outage.
-
Network Management Card Indicated: It includes an existing Network Management Card (AP9631) to enable remote monitoring and remote management.
-
LCD Display: The display has a real-time status update and diagnostics, and is easy to use.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1920VA / 1800W |
|
Topology |
Line-Interactive |
|
Waveform Type |
Pure Sine Wave |
|
Input Voltage Range |
100V-127V (user-selectable) |
|
Output Voltage |
120V AC ±5% |
|
Transfer Time |
4ms typical; 8ms maximum |
|
Output Connections |
6x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-20R |
|
Network Management Card |
AP9631 (included) |
|
LCD Display |
Yes |
|
Form Factor |
Rack/Tower Convertible, 4U |
|
Dimensions (H x W x D) |
17.0" x 7.0" x 19.0" (432 x 178 x 483 mm) |
|
Weight |
85 lbs (38.56 kg) |
|
Warranty |
1-year limited warranty |
Product Information
APC Smart- UPS X SMX2000LVNC is designed with the capability to protect the power of mission-critical equipment to the strongest. Its line interactive connection provides a highly effective power conditioning process, whereas the pure sine wave output ensures its use can be made in delicate electronics. The adjustable input voltage range gives the system a wide scope of flexibility in all kinds of power conditions.
This UPS can be installed in a limited space because it is designed with a shorter depth, resulting in more cable management space. It can be remotely monitored and managed with the use of a Network Management Card (AP9631) installed within, which provides a possibility to proactively maintain it and reduce downtime.
In a rackmount or tower format, the SMX2000LVNC provides stable performance, angle, and protection of your hardware against power glitches.
