Product Overview

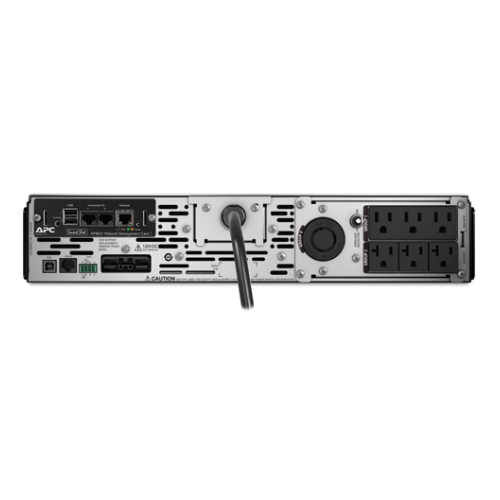

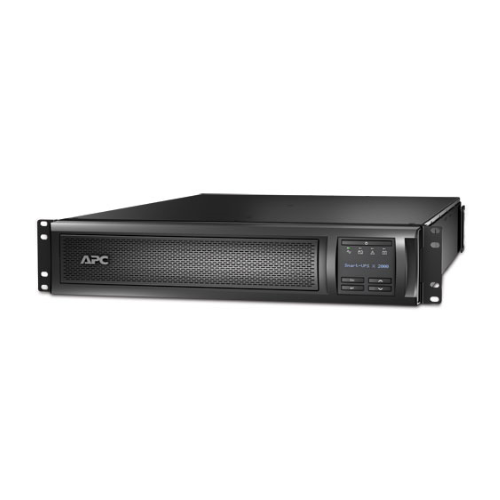

APC Smart-UPS X SMX2000RMLV2UNC is a high-performance, line-interactive, Uninterruptible Power Supply (UPS) that is applied to provide safe and clean power to vital IT devices. This 2U rack/tower convertible UPS has a 1920VA / 1800W power supply with pure sine output to provide immunity of servers, networking equipment, and other sensitive electronic devices to disturbances in power, such as surge, spike, and outage. It is also suitable and well-adapted in an enterprise configuration coupled with a data center since it is long-term capable and an installed network management card.
Key Features and Benefits
-
High Power Capacity: Provides power of 1920VA / 1800W, and this is sufficient to supply power to most gadgets in the event of a power outage.
-
The line-interactive Topology: It fixes the voltage swings automatically when the switch-over is not changed to the battery, and the power is held at constant voltage.
-
Pure Sine Wave Output: It provides stable power that is pure and required in sensitive electronic equipment.
-
Long Run Time: It can support up to 10 external battery packs (SMX120RMBP2U) to have a long backup time.
-
Network Management Card: This enables the remote monitoring and management of the equipment via the application of a web browser or SNMP.
-
Convertible Design: It comes in a 2U rackmount or tower UPS so that it can be deployed flexibly.
-
Input Voltage Selectable by users: It is a 100 V-127 V input voltage, which is appropriate to vary with various power settings.
-
Coverage: 3 years UPS and 2 years battery warranty coverage.
Technical Specifications
|
Feature |
Specification |
|
Capacity |
1920 VA / 1800 W |
|
Topology |
Line-Interactive |
|
Output Voltage (Battery Mode) |
120V ±8% |
|
Output Waveform |
Pure Sine Wave |
|
Input Voltage |
100V-127V (user-selectable) |
|
Input Connection |
NEMA 5-20P |
|
Output Connections |
3 x NEMA 5-15R, 3 x NEMA 5-20R, 1 x NEMA L5-20R |
|
Battery Type |
Sealed Lead-Acid (SLA) Maintenance-Free |
|
Battery Runtime (Full Load) |
Approximately 10.9 minutes |
|
Battery Runtime (Half Load) |
Approximately 27.4 minutes |
|
Form Factor |
2U Rackmount / Tower Convertible |
|
Dimensions (WxDxH) |
17.3" x 17.2" x 3.5" (438 x 437 x 89 mm) |
|
Weight |
40.8 lbs (18.5 kg) |
|
Certifications |
UL1778, CSA C22.2 No. 107.3-05, FCC Class A |
|
Warranty |
3-year UPS, 2-year Battery |
Product Information
APC Smart-UPS X SMX2000RMLV2UNC is designed to offer high-quality and reliable power protection to the critical IT infrastructure. Its line interactive topology guarantees that the equipment connected to it is provided with clean and uniform power without power hitches like voltage sags, surges, and electrical noise. The sine wave is also desirable, especially to sensitive equipment such as servers and networking devices that need to be on steady power to operate well.
The UPS is also flexible in installation due to its 2U rackmount format, which is adaptable to several settings, such as in data centers, server rooms, and telecommunications plants. The remote monitoring and management is made possible by the pre-installed network management card, which enables the IT administrator to monitor UPS status and performance anywhere.
The SMX2000RMLV2UNC will make sure that the user can be assured of their operations that are vital to them, since it has features such as longer operation time, the ability to set the input voltage to different values, and an extensive warranty that will allow the user to be sure that the device will operate without failure.
