Product overview

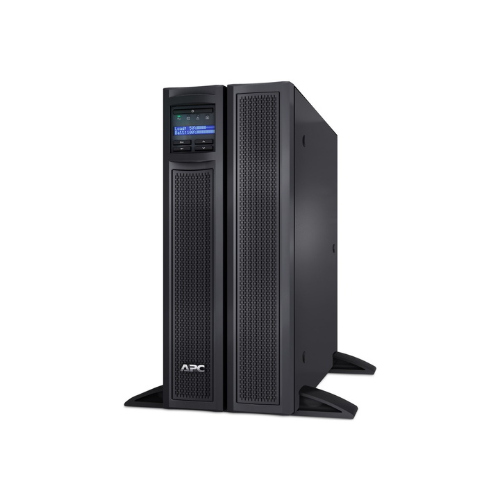

The APC Smart-UPS X SMX3000LV protects key servers, storage and network equipment with the line interactive and pure sine-wave power. AVR remedies brownouts and overvoltage without reducing runtime to actual outages and maintains sensitive loads steady and productive.
Intended to fit in hot-swervable positions on busy edge racks and network closets, it has hot-swervable batteries, outlet-group control to provide sequenced startups and remote reboots, and a front LCD to provide local diagnostics. External battery pack support will allow you to easily configure it to scale runtime with increased requirements, and SmartSlot expansion and USB/Serial connectivity allow it to be easily monitored and controlled.
Key features
-
Topology Line-interactive, pure sine-wave output.
-
Capacity of dense edge/server racks is 3000 VA /2700 W.
-
AVR (boost/trim) in order to stabilize input without battery.
-
Hot-swappable batteries; long-run time, external packs.
-
Remote reboot and orderly power sequencing outlet group control.
-
Status, configuration, and diagnostics front LCD.
-
USB/Serial control and SmartSlot of optional network card.
-
Silent, non noisy office sound; smaller size to fit racks or closets.
Technical specifications
|
Category |
Details |
|
Model |
SMX3000LV |
|
Series |
Smart-UPS X |
|
Topology |
Line-interactive with AVR (boost and trim) |
|
Output waveform |
Pure sine wave |
|
Capacity |
3000 VA / 2700 W |
|
Nominal voltage |
120 V single-phase |
|
Input connector |
NEMA L5-30P (30 A) |
|
Output receptacles |
Mixed NEMA 5-20R groups; outlet grouping for switched control (exact mix may vary by sub-model) |
|
Transfer time |
~4–8 ms (typical for line-interactive) |
|
Efficiency |
High-efficiency operating mode (load dependent) |
|
Battery |
Sealed lead-acid (VRLA), hot-swappable |
|
External battery |
Supported (optional packs for extended runtime) |
|
Communications |
USB, Serial (RS-232); SmartSlot for optional network/SNMP card |
|
Display & alerts |
Front LCD, LEDs, audible alarms, event logs |
|
Protection |
Surge suppression, overload/short-circuit protection |
|
Form factor |
Tower/rack-compatible chassis (rail/kit availability model dependent) |
|
Typical applications |
Server/network closets, storage arrays, pro-AV racks, POS/retail, edge compute |
